Appleton BC100-M

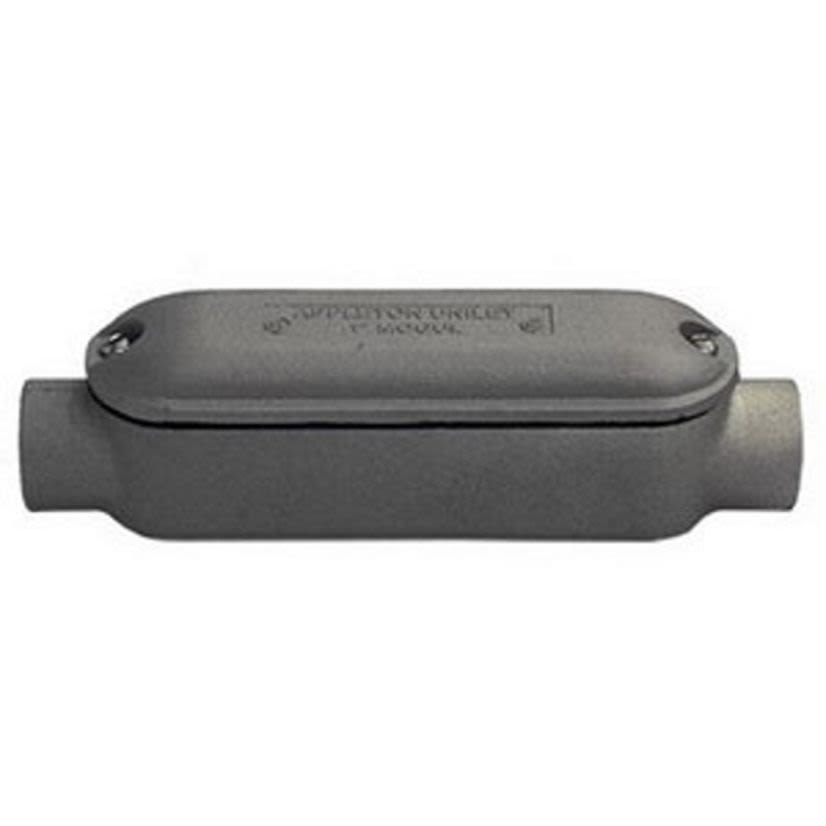

Appleton Mogul UNILETS BC100-M NEC 8x Type-C Conduit Outlet Body With Cover and Gasket, 1 in Hub, 31 cu-in, Malleable Iron, Triple Coated
Appleton BC100-M
Appleton Mogul UNILETS BC100-M NEC 8x Type-C Conduit Outlet Body With Cover and Gasket, 1 in Hub, 31 cu-in, Malleable Iron, Triple CoatedNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #BC100-M
Werner Part #1113616
UPC781381456746
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #BC100-M
Werner Part #1113616
UPC781381456746
Product Description
Appleton Mogul UNILETS Conduit Outlet Body, Type-C, Series: NEC 8x, 1 in Hub, 2 Hubs, 31 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Malleable Iron, Triple Coated Finish, 9.81 in L x 2.38 in W x 2.75 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Capacity31 cu-in
Connection TypeTapered FNPT
Country of OriginMX
Dimensions9.81 in L x 2.38 in W x 2.75 in H
Enclosure TypeNEMA FB-1
FinishTriple Coated
Hub Size1 in
ManufacturerEmerson Electric
MaterialMalleable Iron
Number of Hubs2
Package Height0.57 in
Package Length12.3 IN
Package TypeEACH
Package Weight4.13 lb
Package Width9.8 IN
TypeType-C
Type / StyleType C
Applications
Rigid Metal and IMC Conduit Applications
Warranty
1 Year
Features
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Covers have captive stainless steel screws to speed installation, prevent freezing of screws
- Distance between centerline of each hub bushing (conduit stop) exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1)
