3M 7100169430

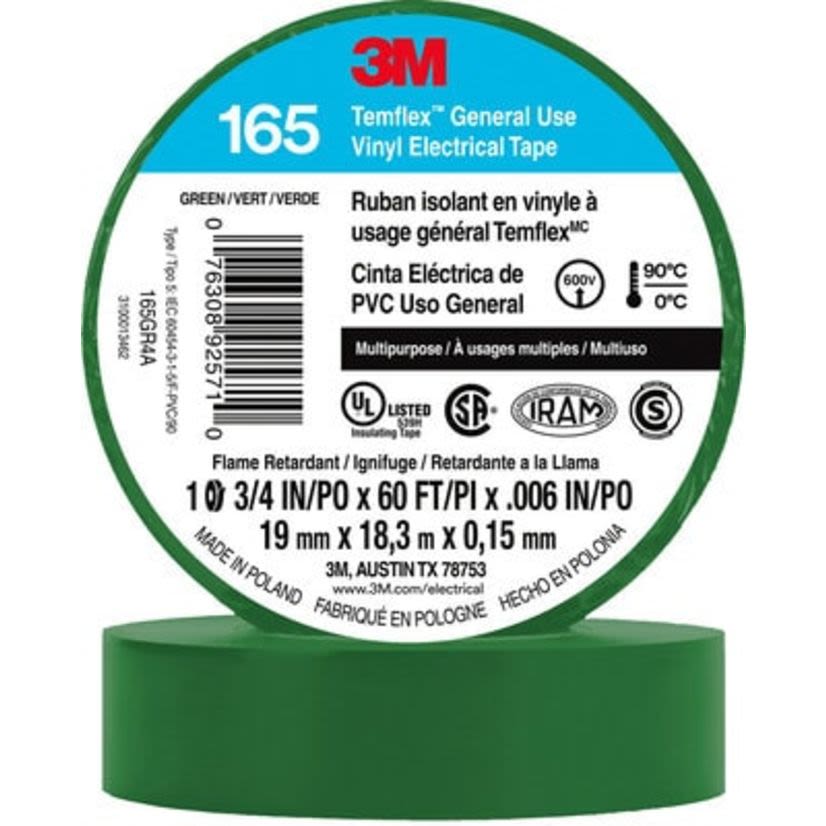

Temflex 7100169430 165GR4A Electrical Tape, 20 yd L 0.75 in W, 0.6 in THK, Vinyl, Rubber Adhesive, PVC Backing, Green
3M 7100169430
Temflex 7100169430 165GR4A Electrical Tape, 20 yd L 0.75 in W, 0.6 in THK, Vinyl, Rubber Adhesive, PVC Backing, GreenIn Stock: 65more info
|
In Stock: 65more info
|
Product Description
Temflex, 7100169430, Tape, Electrical, Series: 165GR4A, 20 yd Length, 0.75 in Width, 0.6 in Thickness, Vinyl, Green, Rubber Adhesive, PVC Backing, 6 V, 40 kV/mm Dielectric Strength, 194 deg F Maximum Operating, 32 deg F Minimum Operating
Attributes
Documents
Applications
Features
Specifications
Attributes
Adhesion Strength18 in-oz
Adhesive MaterialRubber
Backing MaterialPVC
Cable EntryElectrical Supplies
ColorGreen
Country of OriginPL
Dielectric Strength40 kV/mm
GTIN00076308925710
Length60 ft
Manufacturer3M
MaterialVinyl
Maximum Operating Temperature194 deg F
Minimum Operating Temperature32 deg F
Series165GR4A
Specifications MetCSA C22.2 No. 197 File No. 048769 Class 9052-02|OANZ File No. E129200|VDE Certified|UL 510
Tensile Strength13 in-lb
Thickness0.6 in
Voltage Rating6 V
Width0.75 in
Applications
For Insulation
Features
- Flame-retardant and inhibits the corrosion of electrical conductors
- Compatible with rubber and synthetic splicing compounds
- Withstands a temperature range of 32 to 194 deg F (0 to 90 deg C)
- Made without solvents
Specifications
- Adhesion To Steel: 18oz/in
- Elongation at Break: 2
