3M 7010350253

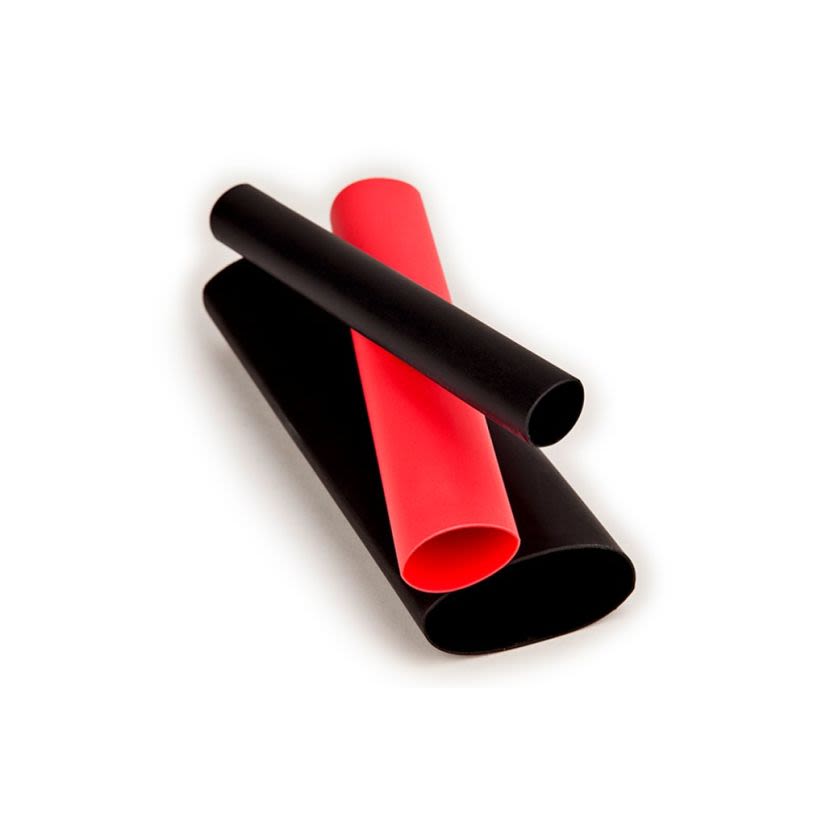

3M 7010350253 EPS-300 Adhesive Lined Heat Shrink Tube, 1/4 in ID Expanded, 0.08 in ID Recovered, 0.04 in THK Wall Recovered, 6 in L, Polyolefin, Black
3M 7010350253
3M 7010350253 EPS-300 Adhesive Lined Heat Shrink Tube, 1/4 in ID Expanded, 0.08 in ID Recovered, 0.04 in THK Wall Recovered, 6 in L, Polyolefin, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
3M, 7010350253, Heat Shrink Tube, Adhesive Lined, Series: EPS-300, 600 V AC, 1/4 in ID Expanded, 0.08 in ID Recovered, Dual Wall, 0.04 in Wall Thickness Recovered, 3:1 Shrink Ratio, 6 in Length, -67 to 230 deg F, 176 deg F Shrink, Polyolefin, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
Cable EntryWire & Cable
ColorBlack
Country of OriginUS
Inner Diameter Expanded1/4 in
Inner Diameter Recovered0.08 in
Length6 in
Manufacturer3M
MaterialPolyolefin
SeriesEPS-300
Shrink Ratio3:1
Shrink Temperature176 deg F
Temperature Rating-67 to 230 deg F
TypeAdhesive Lined Flexible
Type / StyleAdhesive Lined Flexible
Voltage600 VAC
Voltage Rating600 V AC
Wall Thickness Recovered0.04 in
Wall TypeDual
Documents
Applications
Automotive, Truck and Marine Wiring Splices and Harness Breakouts are Quickly and Easily Protected from Harsh Environments Applications
Features
- Self-extinguish flammability property
- No dripping, flowing, cracking heat shock
- Color coded for quick and easy identification of the wire
- Provides a skintight fit and strain relief protection for electronic components, wire splices, wire bundles and harness breakouts
- 175 % elongation heat aging
- 0.3% water absorption
- 700 v/mil dielectric strength
- 10^14 ohm-cm volume resistivity
- 2100 psi tensile strength
- Shrink ratio - offers a 3:1 shrink ratio, when freely recovered, the tubing will shrink 33 percent of its as-supplied diameter
- Dual-wall design - a durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
- This tubing functions in a temperature range of -55 - 110 deg c (-67 - 230 deg f), with a shrinking temperature minimum of 121 deg c (250 deg f)
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|ABS Approved
