3M 7000133287
3M 7000133287 Insulated Male Disconnect, 16 to 14 AWG Conductor, 3/16 in Tab, 0.08 in ID Butted Barrel, ETP/Electrolytic Copper/Vinyl, Blue
3M 7000133287
3M 7000133287 Insulated Male Disconnect, 16 to 14 AWG Conductor, 3/16 in Tab, 0.08 in ID Butted Barrel, ETP/Electrolytic Copper/Vinyl, BlueNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
3M, 7000133287, Male Disconnect, Insulated, 16 to 14 AWG Conductor, 3/16 in Tab, 0.08 in ID Butted Barrel, 600 V AC, Specifications: 0.85 in OAL, -40 to 221 deg F, ETP/Electrolytic Copper/Vinyl, Blue, Tin Plated, 0.02 in THK x 0.187 in W Pad Dimensions
Attributes
Documents
Features
Specifications
Attributes
Barrel Type0.08 in ID Butted
ColorBlue
Conductor size16 to 14 AWG
Conductor TypeCopper
Country of OriginUS

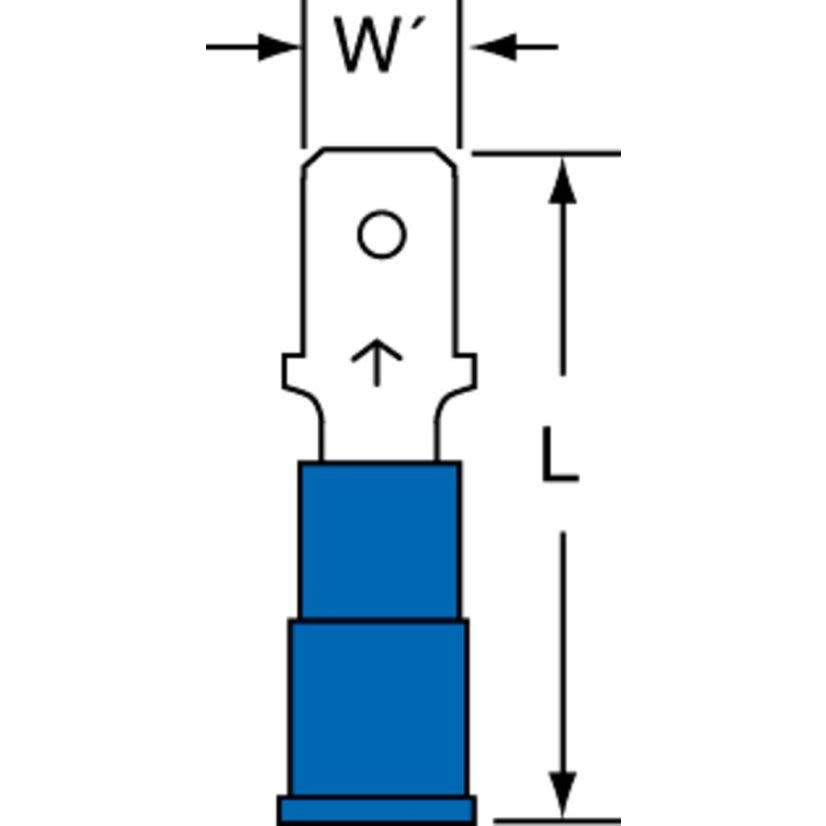

Dimensions0.02 in THK x 0.187 in W Pad
FinishTin Plated
Manufacturer3M
MaterialETP/Electrolytic Copper/Vinyl
Tab Size3/16 in
Temperature Rating-40 to 221 deg F
TypeInsulated
Voltage Rating600 V AC
Documents
Features
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- This male disconnect terminal offers excellent holding force
- Allows for quick and easy disconnect of wires
- Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Specifications
0.85 in OAL
