Panduit PV10-14R-L

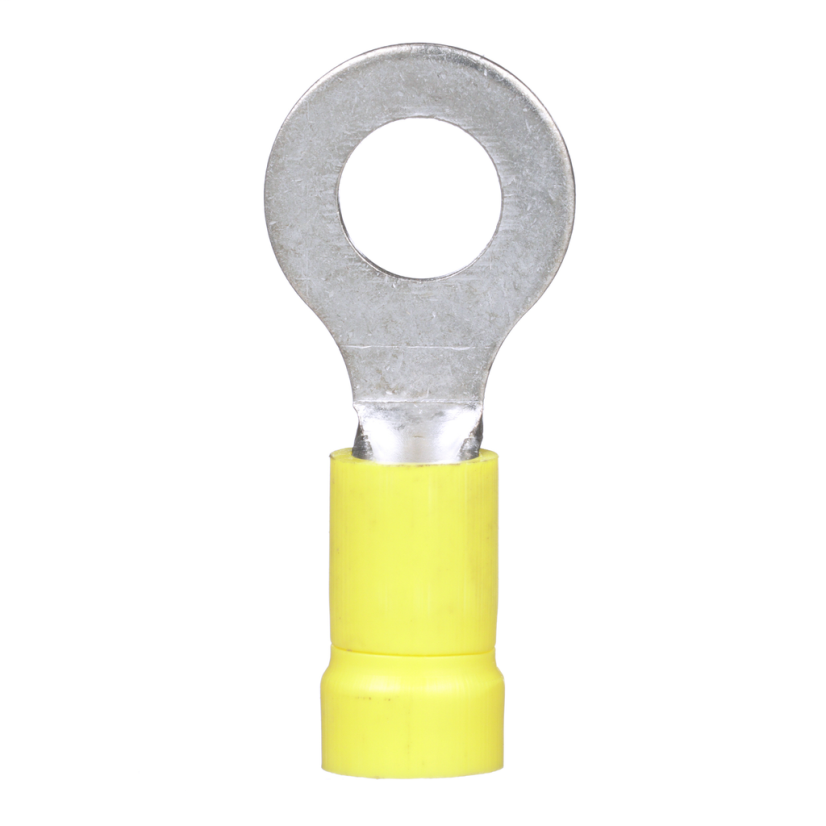

Panduit PV10-14R-L Type PV-R Ring Terminal, 12 to 10 AWG Conductor, 1.23 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow
Panduit PV10-14R-L
Panduit PV10-14R-L Type PV-R Ring Terminal, 12 to 10 AWG Conductor, 1.23 in L, Brazed Seam/Funnel Entry Barrel, Copper, YellowIn Stock: 2150more info
|
In Stock: 2150more info
|
Product Description
Panduit, PV10-14R-L, Ring Terminal, Type PV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, 1/4 in Stud, 1.23 in Length, Brazed Seam/Funnel Entry Barrel, 0.52 in W x 0.04 in THK Tongue, 600 V AC, Specifications: 5/16 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Yellow, 1.23 in L x 0.52 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Barrel TypeBrazed Seam/Funnel Entry
ColorYellow
Conductor size12 to 10 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions1.23 in L x 0.52 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Stud Size1/4 in
Temperature Rating221 deg F
Tongue Size0.52 in W x 0.04 in THK
Tongue TypeRing
TypeType PV-R
Type / StyleType PV-R
Voltage Rating600 V AC
Documents
Applications
High Vibration Applications
Features
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
5/16 in L Wire Strip, 0.38 in Clearance
Warranty
1 year
