Panduit PN10-10R-L

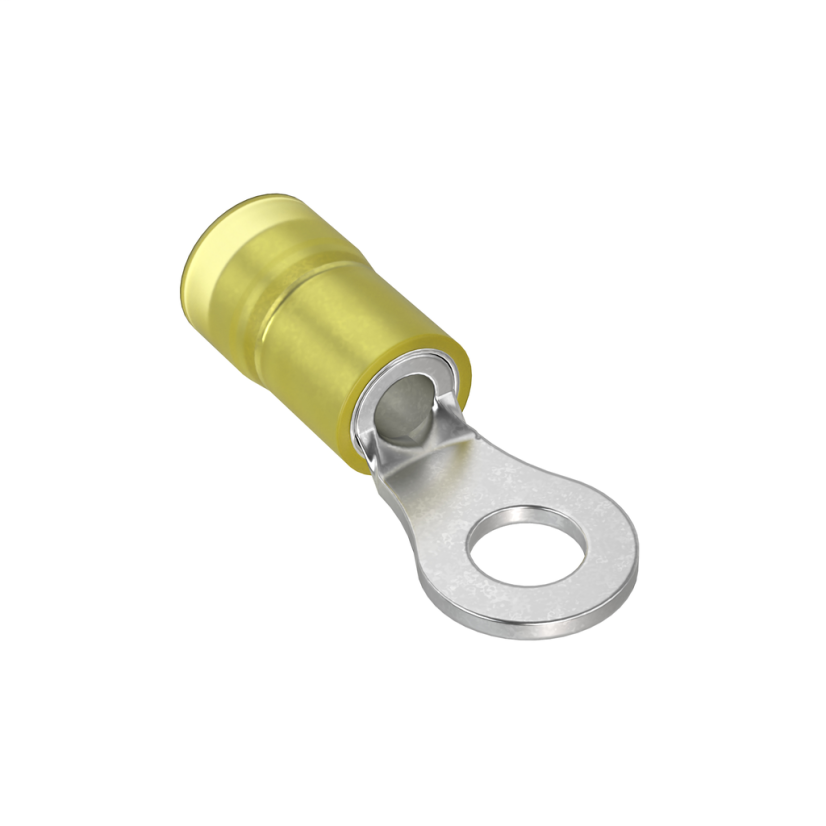

Panduit Pan-Term PN10-10R-L Type PN-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.06 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Yellow
Panduit PN10-10R-L
Panduit Pan-Term PN10-10R-L Type PN-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.06 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, YellowIn Stock: 1700more info
|
In Stock: 1700more info
|
Product Description
Panduit Pan-Term Ring Terminal, Type PN-R Loose Piece, Solid/Stranded Conductor, 10 AWG Conductor, #10 Stud, 1.06 in Length, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Ring Tongue, 0.38 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Nylon Insulation, 0.31 in Clearance, 9/32 in L Wire Strip, 9/32 in Mounting Hole Size, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Insulation Grip Sleeve/Internal Serration/Standard
ColorYellow
Conductor size10 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Stud Size#10
Temperature Rating221 deg F
Tongue Size0.38 in W x 0.04 in THK
Tongue TypeRing
TypeType PN-R Loose Piece
Type / StyleType PN-R
Voltage Rating600 V
Documents
Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
0.225 in Dia Nylon Insulation, 0.31 in Clearance, 9/32 in L Wire Strip, 9/32 in Mounting Hole Size, Ring Shape Enclosure
