Panduit DNF14-250FIB-C

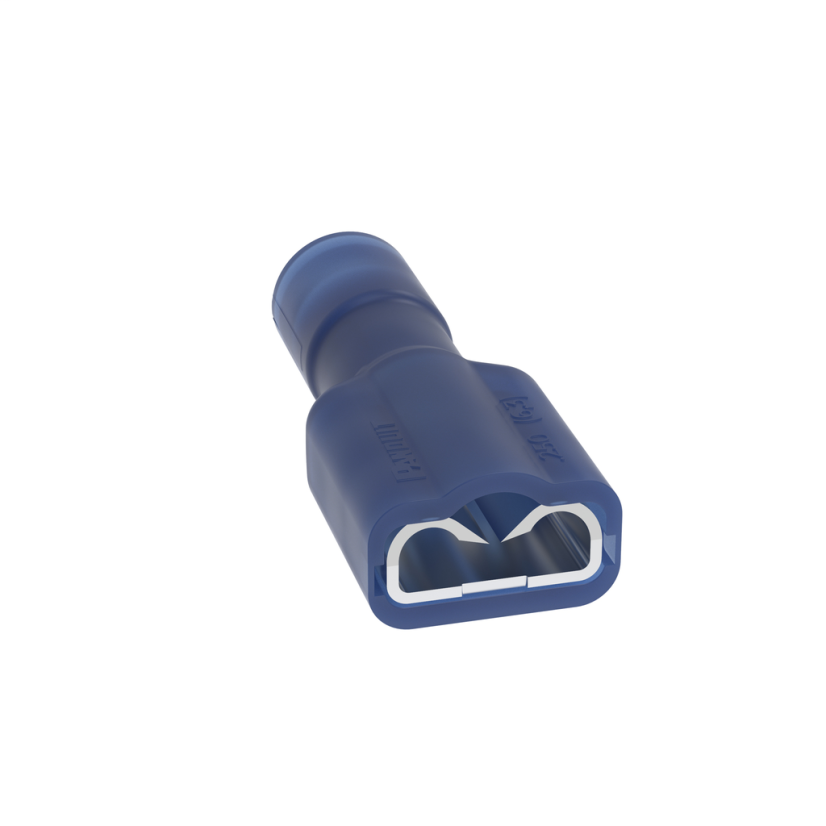

Panduit Pan-Term DNF14-250FIB-C Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Panduit DNF14-250FIB-C
Panduit Pan-Term DNF14-250FIB-C Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully InsulatedIn Stock: 900more info
|
BrandPanduit
MFG #DNF14-250FIB-C
Werner Part #53799
UPC074983827176
In Stock: 900more info
|
BrandPanduit
MFG #DNF14-250FIB-C
Werner Part #53799
UPC074983827176
Product Description
Panduit Pan-Term Female Disconnect, Type DNF-FIB Loose Piece Vibration-Resistant, Stranded Conductor, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 V, Specifications: 0.16 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Blue, Tin Plated, 0.84 in L x 0.35 in W x 0.22 in H Dimensions, Insulated: Fully Insulated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeButted Seam/Funnel Entry
ColorBlue
Conductor size14 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions0.84 in L x 0.35 in W x 0.22 in H
FinishTin Plated
InsulatedFully Insulated
ManufacturerPanduit
MaterialBrass
SeriesDNF-FIB
Tab Size0.25 in W x 0.032 in THK
Temperature Rating221 deg F
Terminal TypeCrimp
TypeType DNF-FIB Loose Piece Vibration-Resistant
Type / StyleVibration Resistant
Voltage Rating600 V
Documents
Applications
For making quick and repeatable interconnections
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Right angle design for use in limited space applications
Specifications
0.16 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
