Hubbell Wiring Device - Kellems CS8165C

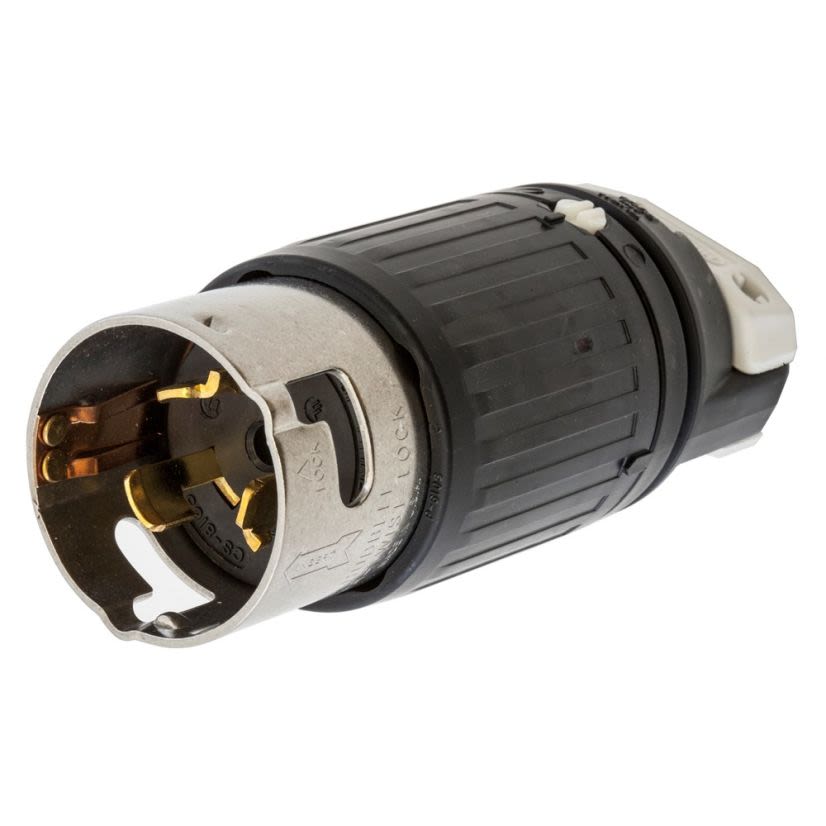

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip CS8165C CS Series 3-Phase Grounding Cord Mount Locking Plug, 480 V AC, 50 A, 3 Poles, 4 Wires, Black/White
Hubbell Wiring Device - Kellems CS8165C
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip CS8165C CS Series 3-Phase Grounding Cord Mount Locking Plug, 480 V AC, 50 A, 3 Poles, 4 Wires, Black/WhiteIn Stock: 88more info
|
BrandHubbell Wiring Device - Kellems
MFG #CS8165C
Werner Part #38663
UPC783585828442
In Stock: 88more info
|
BrandHubbell Wiring Device - Kellems
MFG #CS8165C
Werner Part #38663
UPC783585828442
Product Description
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip, CS8165C, Locking Plug, 3-Phase Grounding Cord Mount, Series: CS Series, 480 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, IP20 Enclosure, 3/4 to 1-1/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 6.37 x 2.56 x 2.56 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorBlack/White
Country of OriginUS
Dimensions6.37 x 2.56 x 2.56 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialNylon
Number of Poles3
Number of Wires4
Package TypeEACH
SeriesCS Series
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Grounding Cord Mount
Type / StylePlug
Voltage Rating480 V AC
Documents
Applications
Power Connection Applications
Warranty
Limited
Features
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Thermoplastic polyester interior provides heat resistance and impact strength
