Leviton 1451-2T

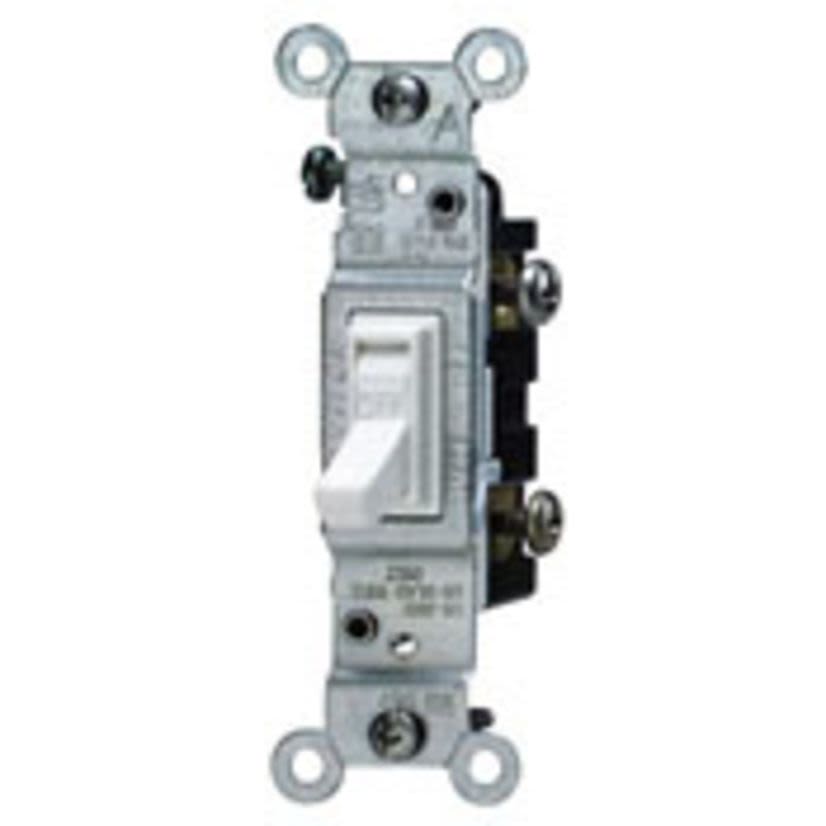

Leviton 1451-2T Grounding Toggle Switch, 120 V AC, 15 A, 1/2, 2 hp Power Rating
Leviton 1451-2T
Leviton 1451-2T Grounding Toggle Switch, 120 V AC, 15 A, 1/2, 2 hp Power RatingIn Stock: 32more info
|
BrandLeviton
MFG #1451-2T
Werner Part #2285536
UPC078477273111
In Stock: 32more info
|
BrandLeviton
MFG #1451-2T
Werner Part #2285536
UPC078477273111
Product Description
Leviton, 1451-2T, Toggle Switch, Grounding, 120 V AC, 15 A, 1/2, 2 hp Power, 1/2 hp at 120 V AC, 2 hp at 240 V AC Contact, 1 Pole, Cam Actuator, Surface Mounting, Side and Push-In Wired Terminal, Thermoplastic, Light Almond, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.2 in H x 1.31 in W x 11 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Actuator TypeCam
ColorLight Almond
Country of OriginUS
Dimensions4.2 in H x 1.31 in W x 11 in D
Electrical Ratings1/2, 2 hp
GTIN00078477273111
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Package TypeEACH
SeriesGrounding
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeSide and Push-In Wired
TypeGrounding
Type / StyleGrounding
Voltage Rating120 V AC
Applications
Commercial Applications
Features
- Faster installation with combination of side wiring and quick wire push-in wiring
- Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
- Impact resistant, durable thermoplastic toggle and frame
- Quick wire push-in terminals accept no 14 AWG solid copper wire only
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Durable thermoplastic toggle and frame
- 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E7458|UL94 V-2 Flammability Rating|CSA File No. LR3413|NOM 057
Warranty
2 years Limited
