Leviton 5604-2W

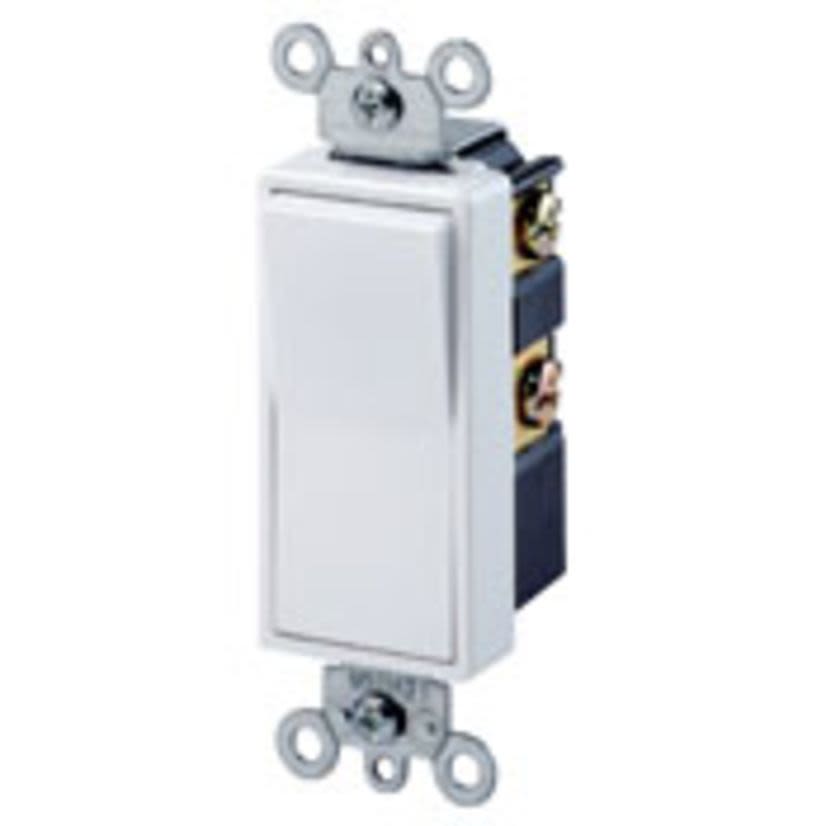

Leviton 5604-2W 4-Way Grounding Quiet Switch, 120/277 V AC, 15 A, 1/2 hp, 2 hp Power Rating
Leviton 5604-2W
Leviton 5604-2W 4-Way Grounding Quiet Switch, 120/277 V AC, 15 A, 1/2 hp, 2 hp Power RatingIn Stock: 50more info
|
BrandLeviton
MFG #5604-2W
Werner Part #45652
UPC078477882672
In Stock: 50more info
|
BrandLeviton
MFG #5604-2W
Werner Part #45652
UPC078477882672
Product Description
Leviton, 5604-2W, Quiet Switch, 4-Way Grounding, 120/277 V AC, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 V AC Contact, On-Off Action, Rocker Actuator, Surface Mounting, Quick-Wire Push-In/Side Wire Terminal, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 4.2 in H x 1.3 in W x 0.99 in D Dimensions
Attributes
Documents
Applications
Features
Included
Specifications
Warranty
Attributes
Actuator TypeRocker
ColorWhite
Country of OriginMX
Dimensions4.2 in H x 1.3 in W x 0.99 in D
Electrical Ratings1/2 hp, 2 hp
GTIN00078477882672
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles2
Package TypeEACH
Series4-Way Grounding
Temperature Rating-40 to 120 deg C Operating Temperature
Terminal TypeQuick-Wire Push-In/Side Wire
Type4-Way Grounding
Type / Style4-Way Grounding
Voltage Rating120/277 V AC
Applications
Residential Applications
Features
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Quickwire push-in terminals accept 14 AWG solid copper wire only
- Sturdy construction for long service life
- Full rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Complements every Decora
- Easy to wire, they work with fluorescent and resistive loads
- Full-rated current capacity with tungsten, fluorescent or resistive loads
- Conform to all NEMA standard specifications
Included
Ground Screw
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E7458|CSA File No. LR3413|NOM 057|UL94 V-2 Flammability Rating
Warranty
2 years Limited
