Leviton E5601-W

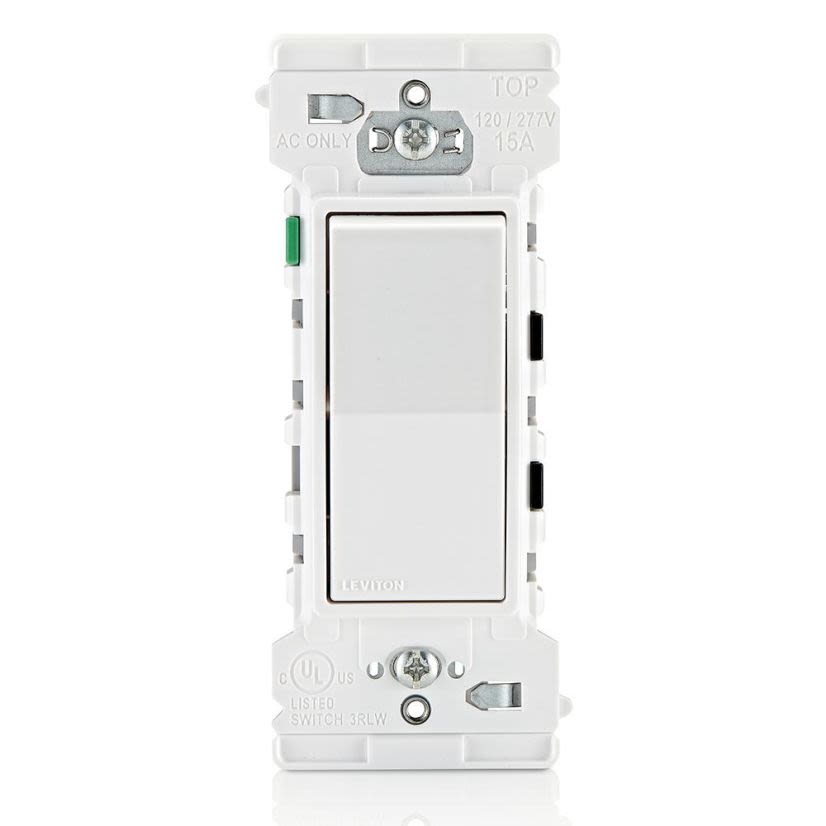

Leviton E5601-W Self-Grounded Switch, 120/277 V AC, 15 A, 1/2, 2 hp Power Rating
Leviton E5601-W
Leviton E5601-W Self-Grounded Switch, 120/277 V AC, 15 A, 1/2, 2 hp Power RatingIn Stock: 109more info
|
BrandLeviton
MFG #E5601-W
Werner Part #4455781
UPC078477332498
In Stock: 109more info
|
BrandLeviton
MFG #E5601-W
Werner Part #4455781
UPC078477332498
Product Description
Leviton, E5601-W, Switch, Self-Grounded, 120/277 V AC, 15 A, 1/2, 2 hp Power, 12 A at 120/277 V AC Contact, 1 Pole, Rocker Actuator, Side Wired Connection, Thermoplastic, White
Attributes
Documents
Features
Specifications
Warranty
Attributes
Actuator TypeRocker
ColorWhite
ConnectionSide Wired
Country of OriginCN
FinishZinc Plated
GradeResidential
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeHole
NEMA RatingWD6 (Face only)
Number of Poles1
Package Height10.5 in
Package Length15.25 in
Package TypeEACH
Package Weight14.7 lbs
Package Width8.5 IN
Size1/2 in
Suitable For Use WithEMT Metal Conduit
TypeSelf-Grounded
Voltage Rating120/277 V AC
Documents
Features
- Provides the traditional appearance and superior performance of Decora devices in a new, faster, easier-to-install, and safer design
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring
- Lever doors have snap feature to assure connection has been made, audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety, eliminates need for electrical tape
- Straps unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Lever connectors work with 14 ga and 12 ga stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Devices coordinate seamlessly with other Decora devices
- Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
- Can be used with Decora wallplates and Decora Plus screwless wallplates
- Test openings for circuit testers
Specifications
- NOM
- UL 20: File E7458
- CSA 22.2 No 111
Warranty
2 Years
