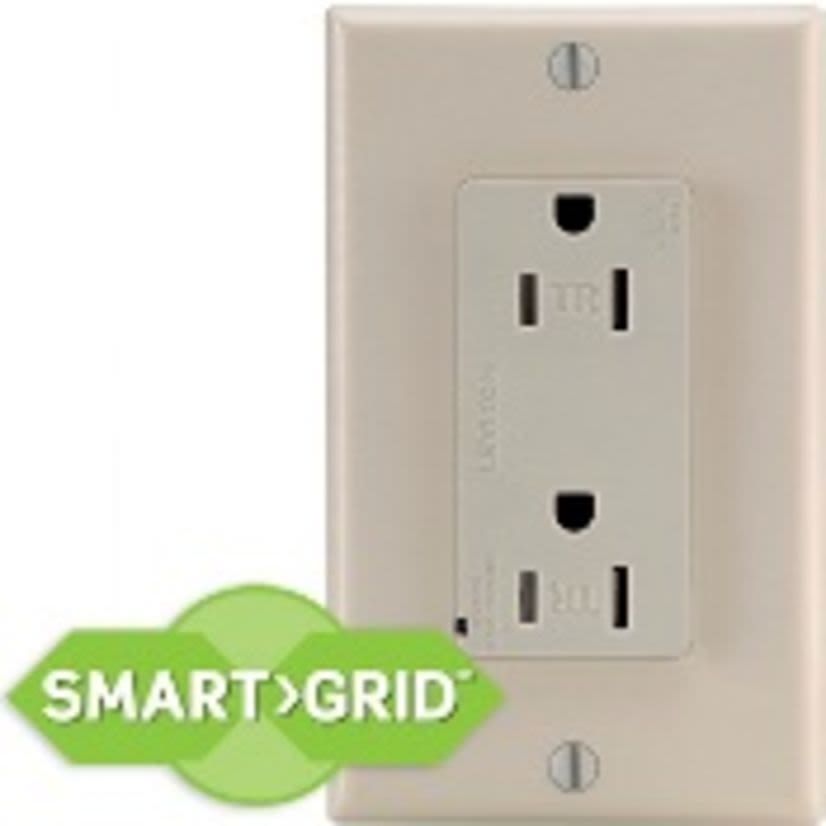

Decora Plus T5280-W
Leviton T5280-W 2-Pole 3-Wire Type 3-Duplex Self-Grounding Tamper Resistant Surge Protective Receptacle, 125 V AC, 15 A, 5 kA Short Circuit
Decora Plus T5280-W
Leviton T5280-W 2-Pole 3-Wire Type 3-Duplex Self-Grounding Tamper Resistant Surge Protective Receptacle, 125 V AC, 15 A, 5 kA Short CircuitNon-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #T5280-W
Werner Part #3957666
UPC078477434314
Non-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #T5280-W
Werner Part #3957666
UPC078477434314
Product Description
Leviton, T5280-W, Surge Protective Receptacle, 2-Pole 3-Wire Type 3-Duplex Self-Grounding Tamper Resistant, 125 V AC, 15 A, 5 kA Short Circuit, Straight Blade Receptacle Outlet, Indicators: Lights, Back/Side Wired Connection, Surface Mounting, 4.21 in H x 1.77 in W x 1.56 in D Size, -40 to 60 deg C Operating, Polycarbonate, White, Environmental Conditions: -40 to 60 deg C Operating Temperature, UL 94 V-2 Flammability Rated
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorWhite
ConnectionBack/Side Wired
Country of OriginMX
ManufacturerLeviton
MaterialPolycarbonate
Mounting TypeSurface
Size4.21 in H x 1.77 in W x 1.56 in D
Temperature Rating-40 to 60 deg C / -40 to 60 deg C Operating Temperature, UL 94 V-2 Flammability Rated
Type2-Pole 3-Wire Type 3-Duplex Self-Grounding Tamper Resistant
Type / Style2-Pole 3-Wire Type 3-Duplex Self-Grounding Tamper Resistant
Voltage Rating125 V AC
Applications
Commercial Applications
Warranty
10 years
Features
- Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts
- Indicator light provides visual indication that equipment is being protected
- EMI/RFI noise filtering
- Wide variety of color options aid in identifying different types of equipment or applications
- Back and side wired design with durable metal mounting strap
- Point of use protection for up to 18000 A of surge current total
- L-N/L-G modes of protection
- 720 J energy rating
- 27 kA peak surge current
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|UL 498/1449|CSA C22.2|NOM 057|UL94 V-2 Flammability Rating
