Leviton 5269-C

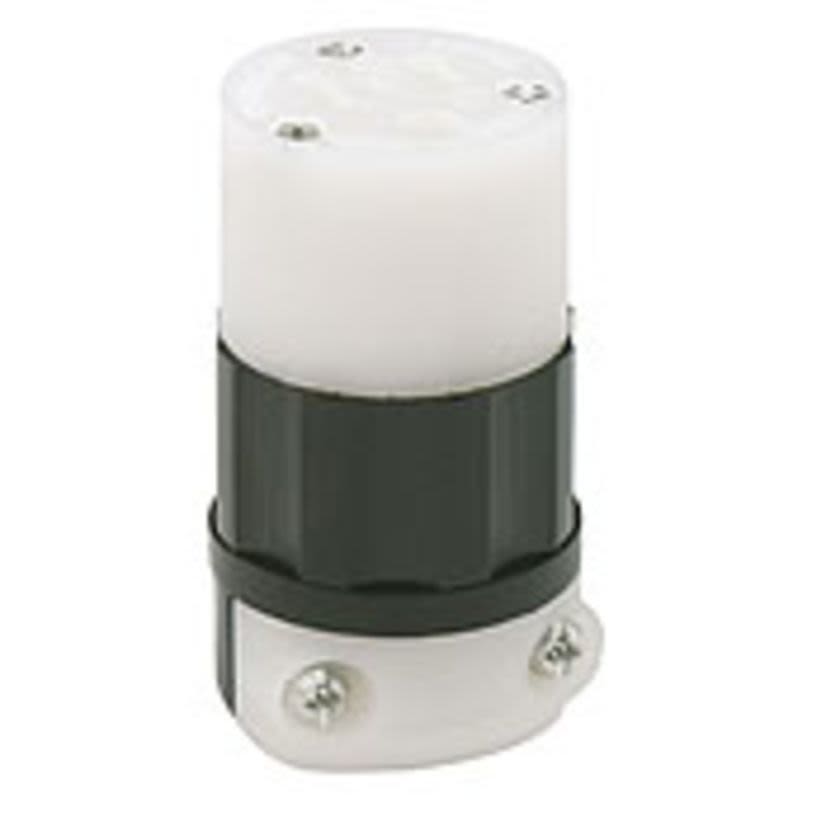

Leviton 5269-C Cable Mount Grounding Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Leviton 5269-C
Leviton 5269-C Cable Mount Grounding Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 74more info
|
BrandLeviton
MFG #5269-C
Werner Part #45533
UPC078477795316
In Stock: 74more info
|
BrandLeviton
MFG #5269-C
Werner Part #45533
UPC078477795316
Product Description
Leviton, 5269-C, Straight Blade Connector, Cable Mount Grounding, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.49 in Dia x 2.76 in H Dimensions
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUS
Dimensions1.49 in Dia x 2.76 in H
GradeIndustrial
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
TypeCable Mount Grounding
Type / StyleCable Mount Grounding
Voltage Rating125 V AC
Warranty
Lifetime
Features
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Captive, color coded brass 8 AWG terminal screws
- Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removed
- Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Super tough nylon body
- 18 to 10 AWG terminal accommodation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
