Leviton 15W47

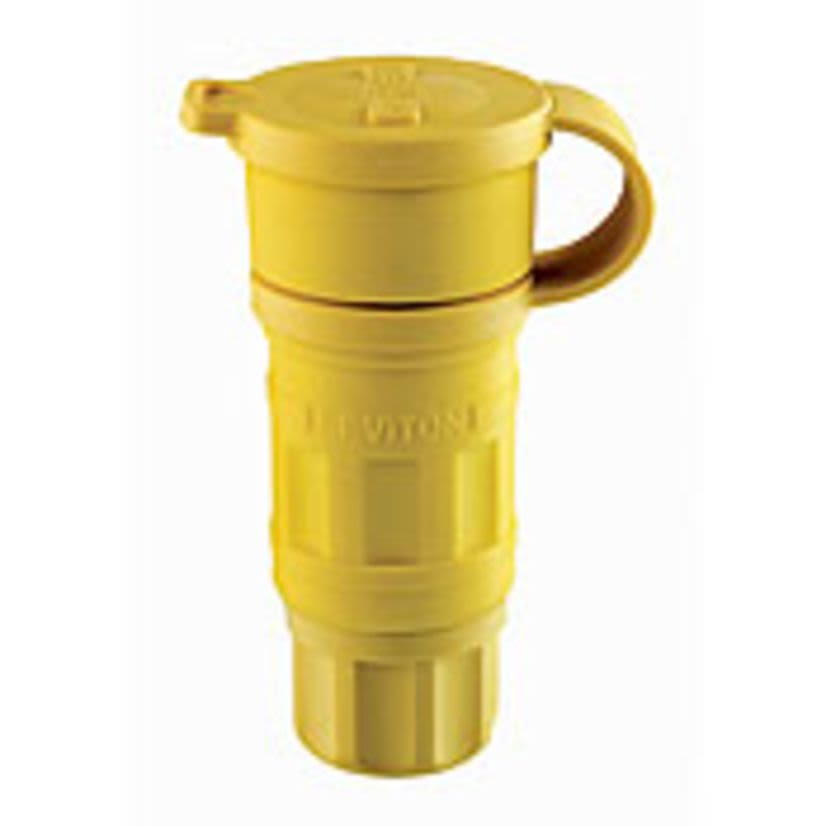

Leviton 15W47 1-Phase Cable Mount Grounding Watertight Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton 15W47
Leviton 15W47 1-Phase Cable Mount Grounding Watertight Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, YellowIn Stock: 4more info
|
BrandLeviton
MFG #15W47
Werner Part #44969
UPC078477848241
In Stock: 4more info
|
BrandLeviton
MFG #15W47
Werner Part #44969
UPC078477848241
Product Description
Leviton, 15W47, Straight Blade Connector, 1-Phase Cable Mount Grounding Watertight, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66/IP67 Enclosure, 0.234 to 0.687 in Diameter Cord, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 1.78 in Dia x 4.22 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorYellow
Country of OriginMX
Dimensions1.78 in Dia x 4.22 in L
Enclosure TypeNEMA 4/4X/12/IP66/IP67
GradeIndustrial
ManufacturerLeviton
MaterialTPV
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type1-Phase Cable Mount Grounding Watertight
Type / Style1-Phase Cable Mount Grounding Watertight
Voltage Rating125 V AC
Applications
Industrial
Warranty
Lifetime
Features
- Corrosion resistant electroless nickel coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments
- EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents
- Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse
- Interlocking tongue and groove construction seals out water, moisture and dirt when plugs are mated with connectors
- Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal
- Non-magnetic stainless steel fast threading assembly screws wont interfere with sensitive equipment
- Connector hood closure cap seals device when not in use
- 18 to 10 AWG terminal accommodation
- S/ST/SO/SOW cord
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|NOM 057|NEMA WD-1/WD-6|UL 498|CSA C22.2 No. 42|UL94 V-2 Flammability Rating
