Leviton T5320-T

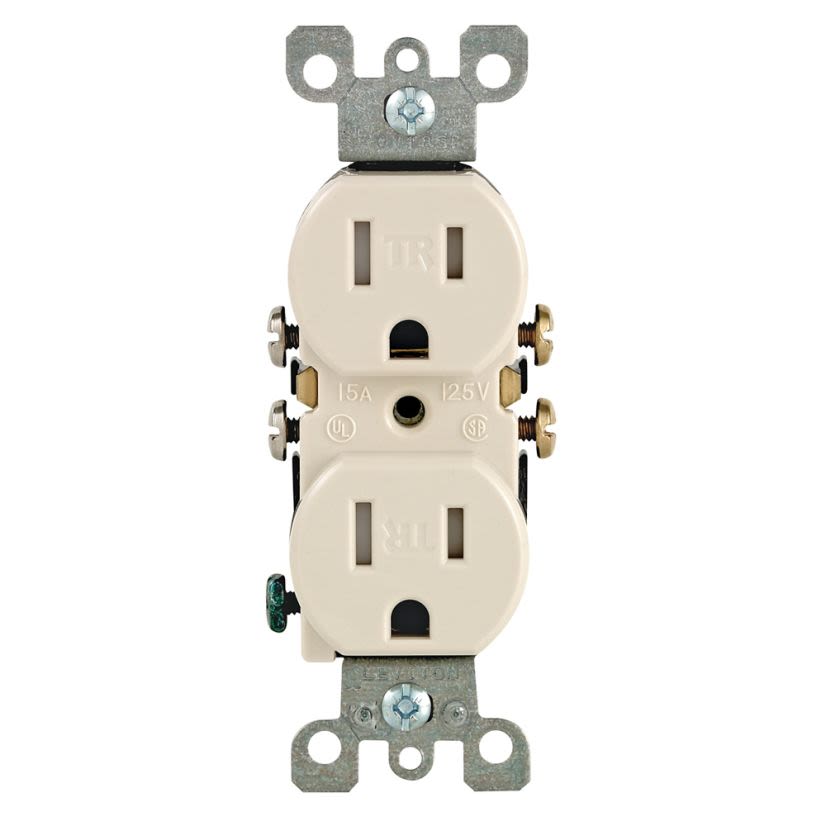

Leviton T5320-T Duplex Grounding Tamper and Weather-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
Leviton T5320-T
Leviton T5320-T Duplex Grounding Tamper and Weather-Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light AlmondIn Stock: 557more info
|
BrandLeviton
MFG #T5320-T
Werner Part #3793669
UPC078477381731
In Stock: 557more info
|
BrandLeviton
MFG #T5320-T
Werner Part #3793669
UPC078477381731
Product Description
Leviton, T5320-T, Straight Blade Receptacle, Duplex Grounding Tamper and Weather-Resistant, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential Grade, -40 to 60 deg C, Quick-Wire Push-In/Side Wire Terminal, Thermoplastic, Light Almond, 1.31 in L x 0.98 in W x 4.2 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorLight Almond
Country of OriginUS
Dimensions1.31 in L x 0.98 in W x 4.2 in H
GradeResidential
GTIN00078477381731
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesDuplex Grounding Tamper and Weather-Resistant
Temperature Rating-40 to 60 deg C
Terminal TypeQuick-Wire Push-In/Side Wire
TypeDuplex Grounding Tamper and Weather-Resistant
Type / StyleDuplex Grounding Tamper and Weather-Resistant
Voltage Rating125 V AC
Applications
New or Renovated Single, Multi-Family Housing, Schools, Libraries and Childcare Facilities Applications
Features
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Quickwire push-in terminals accept 14 AWG solid copper wire only
- Double wipe power contacts for maximum conductivity and plug retention
- Heavy gauge, rust resistant steel mounting strap
- Shallow design for maximum wiring room in box
- Captive mounting screws
- Break-off plaster ears for best flush alignment
- Break-off tabs allow easy two-circuit conversion
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|2008 NEC Compliant|NEMA 5-15R
Warranty
2 years Limited
