EATON ENR5201 M4

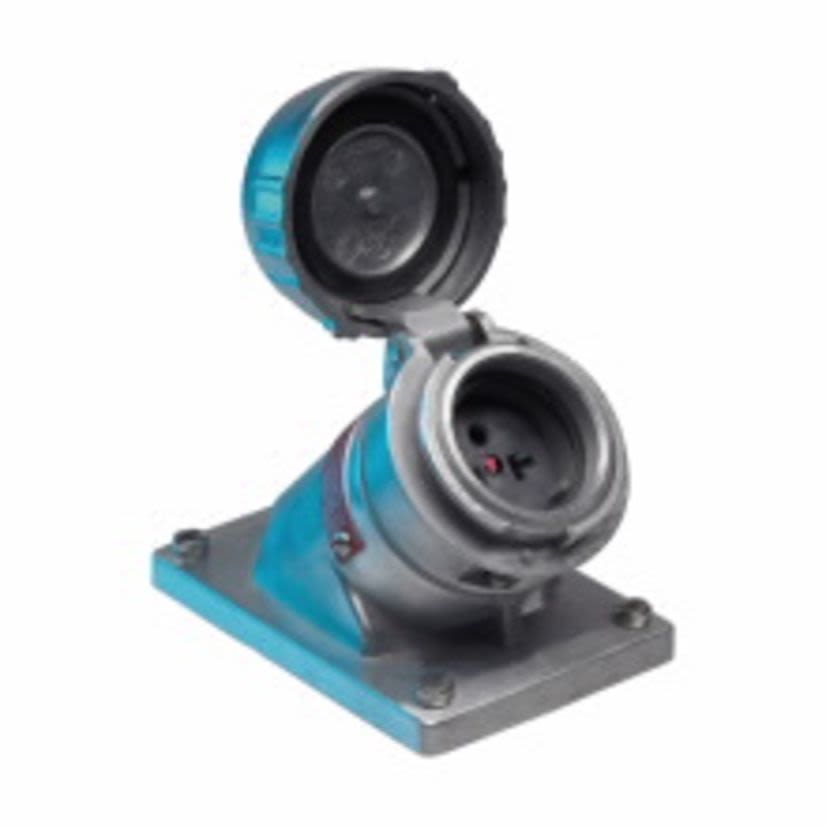

EATON Crouse-Hinds Ark-Gard ENR5201 M4 ENR Premier Dead Front Explosionproof Interlocked Receptacle Unit, 125 VAC, 20 A
EATON ENR5201 M4
EATON Crouse-Hinds Ark-Gard ENR5201 M4 ENR Premier Dead Front Explosionproof Interlocked Receptacle Unit, 125 VAC, 20 ANon-stock product. Available to order - lead time may vary.
BrandEATON
MFG #ENR5201 M4
Werner Part #3944928
UPC662276168107
Non-stock product. Available to order - lead time may vary.
BrandEATON
MFG #ENR5201 M4
Werner Part #3944928
UPC662276168107
Product Description
EATON Crouse-Hinds Ark-Gard Receptacle Unit, Dead Front Explosionproof Interlocked, Series: ENR Premier, 125 VAC, 20 A, 50 to 400 Hz Frequency, NEMA 5-20R NEMA Rating, NEMA 3/3R/7B/7C/7D/9F/9G/12 Enclosure, Saddle Clamp Terminal, Die Cast Copper-Free Aluminum
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginMexico
Enclosure TypeNEMA 3/3R/7B/7C/7D/9F/9G/12
Frequency Rating50 to 400 Hz
ManufacturerEaton
MaterialDie Cast Copper-Free Aluminum
NEMA RatingNEMA 5-20R
Number of Poles3
Number of Wires2
Package Height4.2 in
Package Length5.1 in
Package TypeEACH
Package Weight2 lb
Package Width6.5 in
SeriesENR Premier
Terminal TypeSaddle Clamp
TypeDead Front Explosionproof Interlocked
Type / StyleDead Front Interlocked
Voltage Rating125 V AC
Documents
Applications
Industrial Facilities, Factories Facility, Power Distribution and Control, Motor Generator Units, Welders, Pumps, Compressors, Heating and Cooling Units, Cellular Relay Stations, Conveyors, Lighting Systems and Wet Locations
Features
- Factory sealed chamber encloses the potential arcing components between two explosionproof threaded joints, these threads are specially coated to guarantee freedom of movement, which ensures ON-OFF action, no additional seals are required
- Gasketed screw cap cover design offers superior protection from harsh environments for increased product life
- Protected hinged cover design provides 360 deg protection around cover hinge to reduce damage from dirt and corrosion
- Saddle clamp terminals reduce installation and maintenance costs with easy to wire, time saving terminals
- Lockout/tagout hole complies with OSHA lockout/tagout requirements
- Ark-Gard 2 receptacle incorporates three spring-loaded slide keys that prevent the receptacle face plate from being rotated until the ENP plug is fully inserted into the receptacle
- To make the connection, the ENP plug is fully inserted and the receptacle face moved inward by pushing the plug forward
- The plug is then rotated, closing the circuit, as rotation begins, the plug becomes locked in the receptacle and cannot be accidentally disengaged
- In making or breaking the circuit, any resulting electrical arc is confined in the factory sealed chamber
- Dead front interlocked circuit breaking, dust-ignitionproof and raintight
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEC Class I, Div 1, Groups B, C, D, Class II, Groups F, G, Class III, CEC Class I, Div 1, Groups B, C, D, Class II, Group G, Class III|UL Listed
