Crouse-Hinds series CSR63542

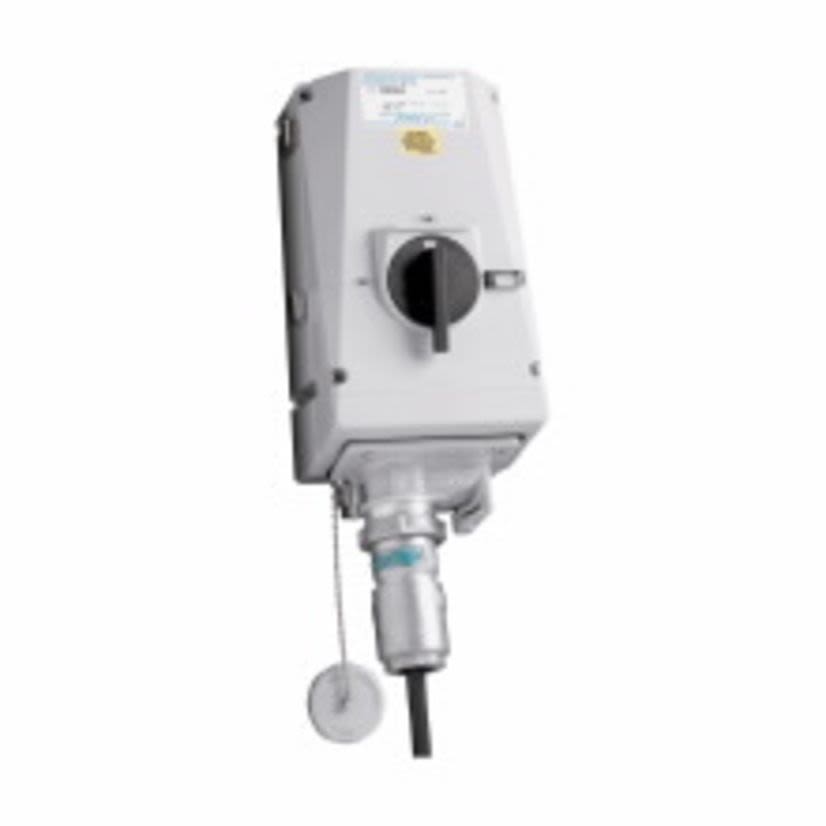

Crouse-Hinds Arktite CSR63542 Male Non-Fused Non-Metallic Watertight Corrosion-Resistant Interlocked Receptacle, 250/600 VAC, 60 A, 4 Poles, 3 Wires
Crouse-Hinds series CSR63542
Crouse-Hinds Arktite CSR63542 Male Non-Fused Non-Metallic Watertight Corrosion-Resistant Interlocked Receptacle, 250/600 VAC, 60 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Crouse-Hinds Arktite Interlocked Receptacle, Male Non-Fused Non-Metallic Watertight Corrosion-Resistant, Series: CSR, 250/600 VAC, 60 A, 20 hp, 40 hp, 4 Pole, 3 Wires, NEMA 4X NEMA Rating, IP66 Enclosure, Krydon Fiberglass Reinforced Polyester, 7.87 in W x 19.26 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginUS
Dimensions7.87 in W x 19.26 in H
Enclosure TypeIP66
Horsepower20 hp, 40 hp
ManufacturerEaton
MaterialKrydon Fiberglass Reinforced Polyester
NEMA RatingNEMA 4X
Number of Poles4
Number of Wires3
Package TypeEACH
SeriesCSR
TypeMale Non-Fused Non-Metallic Watertight Corrosion-Resistant
Type / StyleMale Non-Fused Non-Metallic Watertight Corrosion Resistant
Voltage Rating250/600 VAC
Documents
Applications
Industrial Facilities, Factories Facility, Power Distribution and Control, Welders, Compressors, Conveyors, Portable Tools and Lighting Systems Applications
Features
- Threaded front cap ensures watertight rating while plug is not engaged
- Locking ring on the APJ/NPJ Arktite plug threads onto the receptacle, providing positive, worry-free power engagement and a watertight environmental seal
- Satisfies OSHA lockout/tagout requirements
- Hp rated enclosed switch for motor load applications
- Fused CSR offers a hinged cover for easy access when wiring or replacing fuses
- Eaton Bussmann series cube fuse with indicator is fully rated for 30 a and 60 a at 600 vac (fuses not included)
- Tongue in groove sealing system with continuous raised rib around enclosure ensures watertight and hose down ratings
- Corrosion and impact-resistant enclosure offers enclosure type 4X, watertight, IP66 rating
- Innovative cover break line provides easy wiring access
- Large rotary handle is easy to operate even with gloved hands
- Self-wiping, naval brass contacts in receptacle assure reliable performance and long, dependable life
- Corro-Free epoxy powder coated receptacle for even greater outdoor weather ability
- Field proven direct drive interlock provides positive locking action every time
- 1-1/4 in hub
- Fiber reinforced polyester enclosure, aluminum receptacle housing, naval brass power contact, stainless steel interlock mechanism and hardware material
- To supply power to portable or fixed electrical equipment such as welders, compressors, conveyors, portable tools, lighting systems and similar equipment, in damp or corrosive locations, in wet locations and in hose down areas
- Corro-Free epoxy powder aluminum, natural brass and stainless steel finish
Specifications
Standards/Approvals: cUL Listed|UL Listed
