Appleton WSRD6352

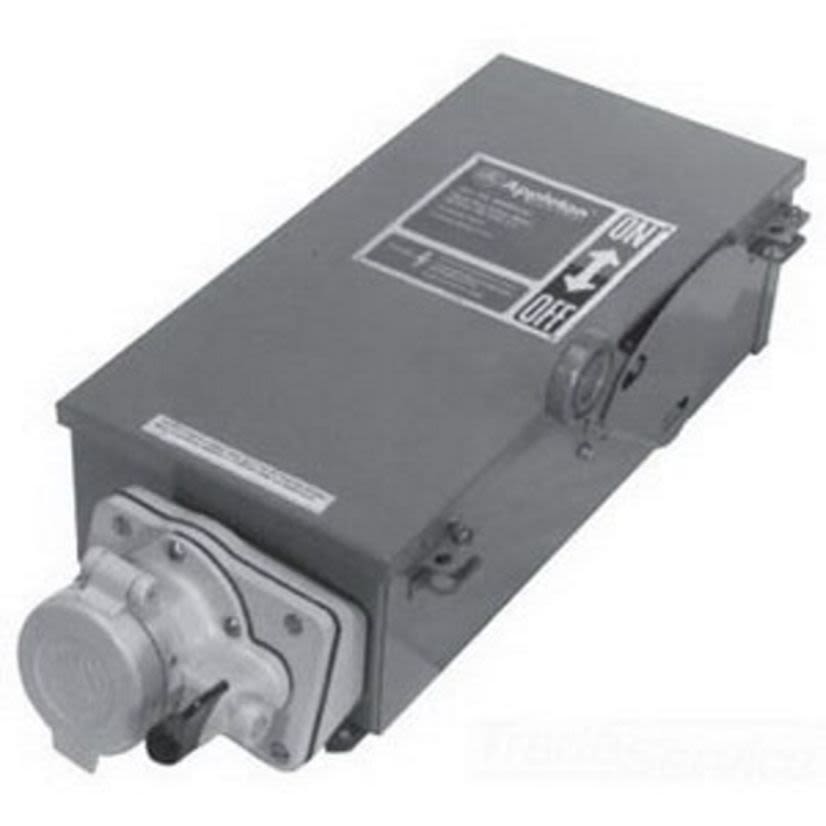

Appleton WSRD6352 3-Phase Fused Grounding Style 2 Interlocked Receptacle With Enclosed Disconnect Switch, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires
Appleton WSRD6352
Appleton WSRD6352 3-Phase Fused Grounding Style 2 Interlocked Receptacle With Enclosed Disconnect Switch, 600 V AC/250 V DC, 60 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #WSRD6352
Werner Part #3759614
UPC781381697521
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #WSRD6352
Werner Part #3759614
UPC781381697521
Product Description
Appleton Interlocked Receptacle, 3-Phase Fused Grounding Style 2, Series: WSRD, 600 V AC/250 V DC, 60 A, 15 /50 hp, 50/60 Hz Frequency, 4 Pole, 3 Wires, NEMA 3R/12 NEMA, 6 to 2 AWG Wire, Copper Free Aluminum, 23 in H x 10.81 in W x 10 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginUS
Dimensions23 in H x 10.81 in W x 10 in D
Frequency Rating50/60 Hz
Horsepower15 /50 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3R/12
Number of Poles4
Number of Wires3
Package Height13.6 IN
Package Length29 in
Package TypeEACH
Package Weight33 lb
Package Width11 in
SeriesWSRD
Size of Wire6 to 2 AWG
Type3-Phase Fused Grounding Style 2
Type / Style3-Phase Fused Grounding Style 2
Voltage Rating600 V AC/250 V DC
Documents
Applications
ACP6034BC Mating Plug, Powertite ACP and CPH Plugs, Welders, Generators, Compressors, Infrared Ovens, Batch Feeders, Conveyors, Truck Terminals and Marine Docks Applications
Warranty
Limited
Features
- Shell and extra pole grounding style 2
- For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug
- Short circuit withstand rated to 200000 RMS symmetrical amps
- Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
- Cover can be padlocked closed
- Dead front design receptacle is not energized until plug is fully inserted and switch is engaged
- Without viewing window
Specifications
Standards/Approvals: Buy American Act Compliant|UL 98|UL 50E|UL 1682|UL 1686 File No. E145917|UL File No. E160652|CSA C22.2 No.4/182.1/CSA File No. 025875
