Appleton ADRE3034-75

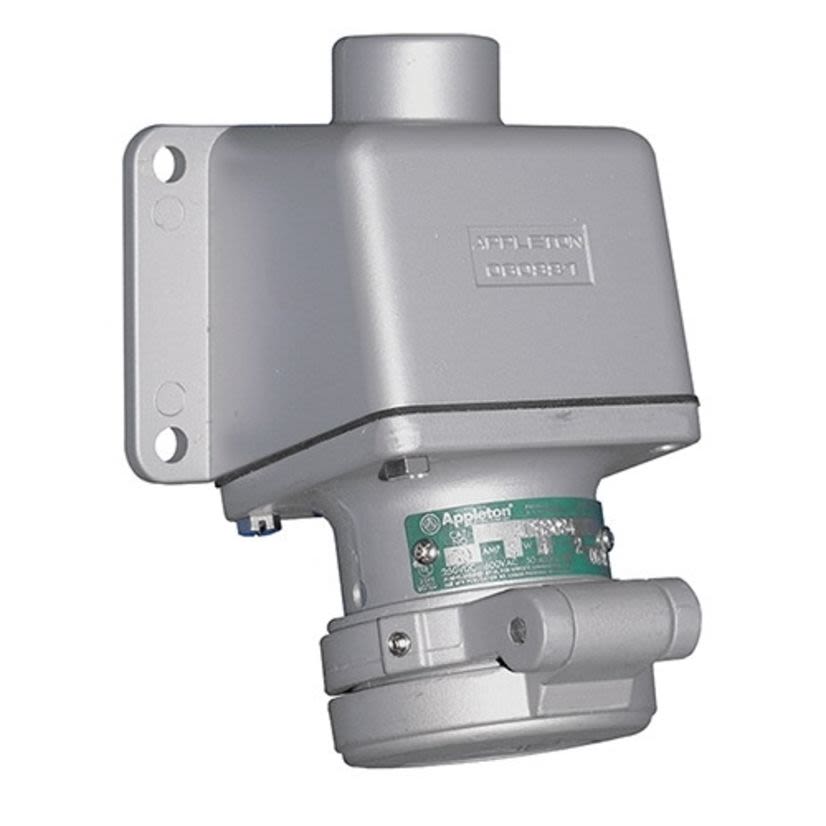

Appleton Powertite ADRE3034-75 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With AEE Mounting Box, 600 V AC/250 V DC, 30 A, 4 Poles, 3 Wires
Appleton ADRE3034-75
Appleton Powertite ADRE3034-75 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With AEE Mounting Box, 600 V AC/250 V DC, 30 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ADRE3034-75
Werner Part #1122077
UPC781381158527
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ADRE3034-75
Werner Part #1122077
UPC781381158527
Product Description
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2, 600 V AC/250 V DC, 30 A, 20 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 3/4 in Hub, 1/2 to 1-1/4 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 6.88 in H x 5 in W x 3.45 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions6.88 in H x 5 in W x 3.45 in D
Electrical RatingsNEMA 3/3R/4/4X
Frequency Rating50 to 400 Hz
Horsepower20 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3/3R/4/4X
Number of Poles4
Number of Wires3
Size3/4 in
Temperature Rating-40 to 225 deg F
Terminal TypePressure Wire
Type3-Phase Grounding Style 2
Type / Style3-Phase Grounding Style 2
Voltage Rating600 V AC/250 V DC
Documents
Applications
ACP3034BC Metallic and NMACP3034BC Non-Metallic Clamping Ring Plugs, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Rough Usage Construction, Ports and Other Ship To Shore Applications
Warranty
Limited
Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, brass with beryllium copper springs
Specifications
Standards/Approvals: UL1682|UL 1686|UL 50E File No. E145916|E145917|CSA C22.2 No. 182.1|CSA File No. 065179|NEMA FB-11|RoHS Compliant
