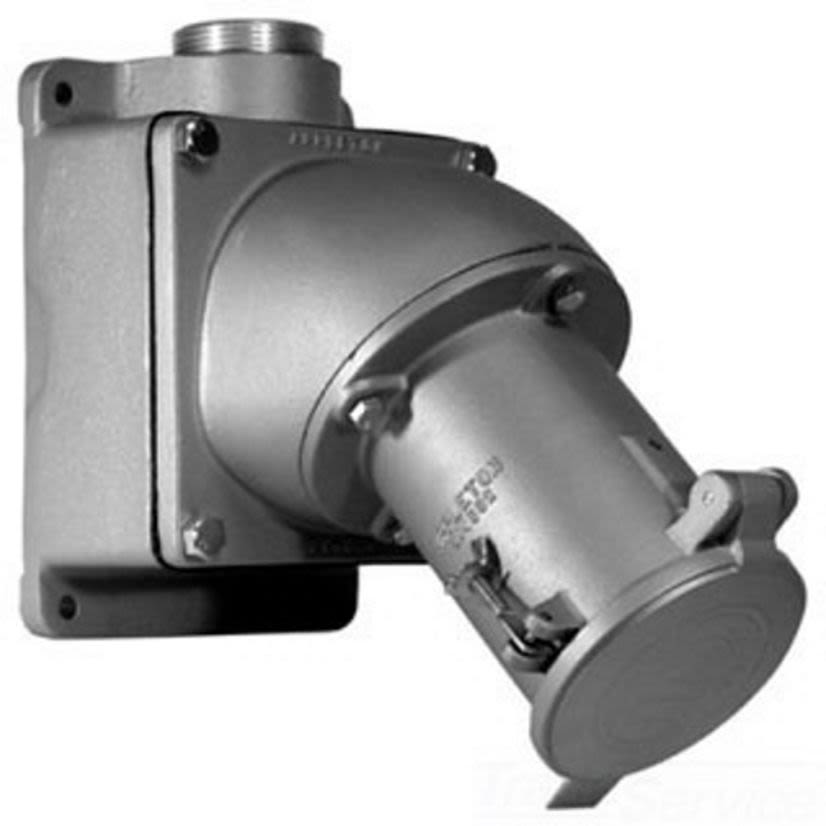

Appleton Powertite ADJA20034200RS 3-Phase Grounding Style 2 Reverse Service Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 200 A, 4 Poles, 3 Wires
Appleton ADJA20034200RS
Appleton Powertite ADJA20034200RS 3-Phase Grounding Style 2 Reverse Service Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 200 A, 4 Poles, 3 Wires
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ADJA20034200RS
Werner Part #1123579
UPC781381711876
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ADJA20034200RS
Werner Part #1123579
UPC781381711876
Product Description
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2 Reverse Service, 600 V AC/250 V DC, 200 A, 50 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 2 in Hub, 1-7/8 to 2-1/2 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 13-1/2 in H x 8 in W x 14-1/4 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions13-1/2 in H x 8 in W x 14-1/4 in D
Electrical RatingsNEMA 3/3R/4/4X
Frequency Rating50 to 400 Hz
Horsepower50 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3/3R/4/4X
Number of Poles4
Number of Wires3
Package TypeEACH
Size2 in
Temperature Rating-40 to 225 deg F
Terminal TypePressure Wire
Type3-Phase Grounding Style 2 Reverse Service
Type / Style3-Phase Grounding Style 2 Reverse Service
AP20034E Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction Applications
