Appleton ARC3044BC

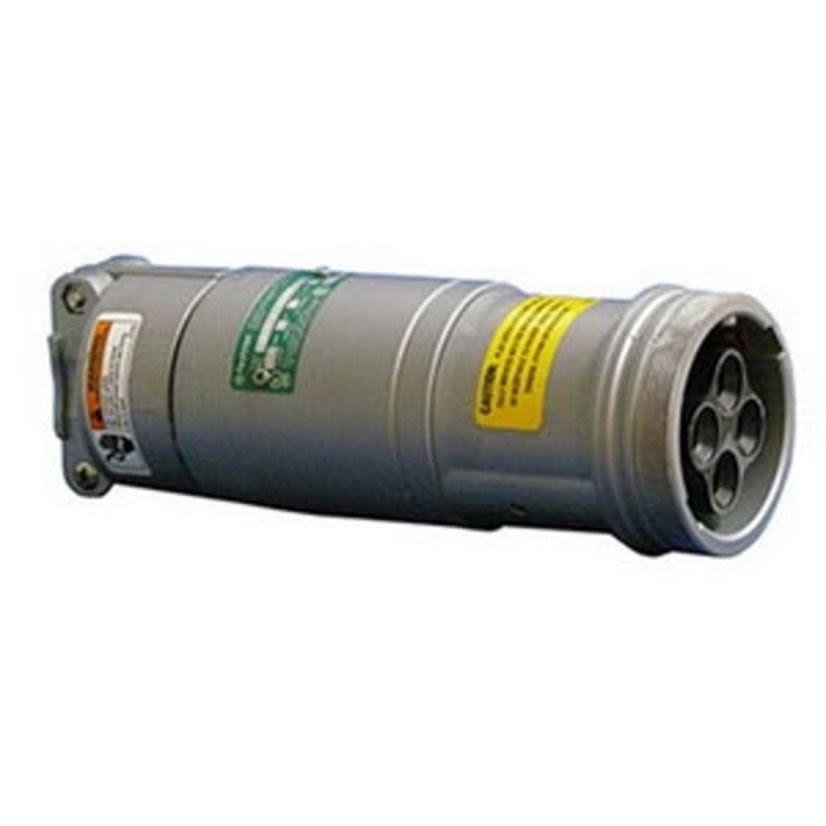

Appleton Powertite ARC3044BC ARC 3-Phase Grounding Style 1 Weatherproof Pin and Sleeve Connector Body, 600 V AC/250 V DC, 30 A, 4 Poles, 4 Wires
Appleton ARC3044BC
Appleton Powertite ARC3044BC ARC 3-Phase Grounding Style 1 Weatherproof Pin and Sleeve Connector Body, 600 V AC/250 V DC, 30 A, 4 Poles, 4 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ARC3044BC
Werner Part #15622
UPC781381440585
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ARC3044BC
Werner Part #15622
UPC781381440585
Product Description
Appleton Powertite Pin and Sleeve Connector Body, 3-Phase Grounding Style 1 Weatherproof, Series: ARC, 600 V AC/250 V DC, 30 A, 50/400 Hz Frequency, 4 Pole, 4 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 10.5 in L x 3.13 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Country of OriginMX
Dimensions10.5 in L x 3.13 in W
Frequency Rating50/400 Hz
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3/3R/4/4X
Number of Poles4
Number of Wires4
Package Height3.6 IN
Package Length7.5 in
Package TypeEACH
Package Weight1.75 lb
Package Width4.6 in
SeriesARC
Temperature Rating-40 to 225 deg F
Terminal TypePressure Wire
Type3-Phase Grounding Style 1 Weatherproof
Type / Style3-Phase Grounding Style 1 Weatherproof
Voltage Rating600 V AC/250 V DC
Documents
Applications
ACP3044BC Metallic Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction Applications
Features
- Shell grounding style 1
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Water resistant
Specifications
Standards/Approvals: UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2 No. 182.1|CSA File No. 065179|RoHS Compliant
Warranty
Limited
