Crouse-Hinds series CPS532 201

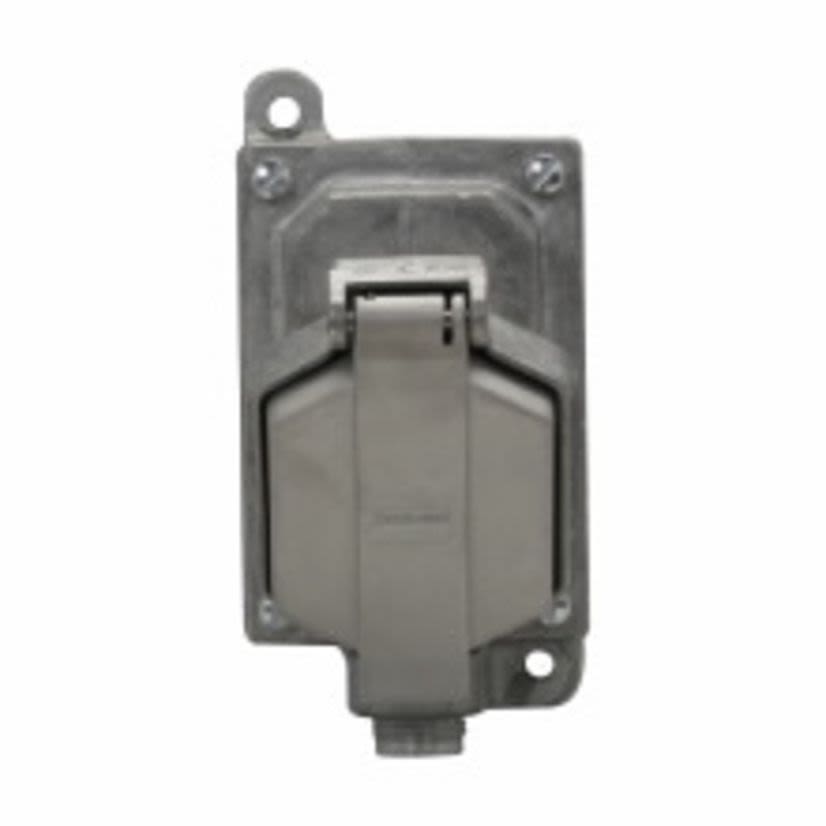

Crouse-Hinds Arktite CPS532 201 1-Gang Angle Delayed Action Dead End Factory Sealed Receptacle Assembly, 125 to 250 VAC/480 VAC, 30 A
Crouse-Hinds series CPS532 201
Crouse-Hinds Arktite CPS532 201 1-Gang Angle Delayed Action Dead End Factory Sealed Receptacle Assembly, 125 to 250 VAC/480 VAC, 30 ANon-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #CPS532 201
Werner Part #3774157
UPC782274184104
Non-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #CPS532 201
Werner Part #3774157
UPC782274184104
Product Description
Crouse-Hinds Arktite Receptacle Assembly, 1-Gang Angle Delayed Action Dead End Factory Sealed, Series: CPS, 125 to 250 VAC/480 VAC, 30 A, Pressure Wire Terminal, 3-1/2 in L x 7-1/4 in W x 6-23/32 in H Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
Country of OriginUS
Dimensions3-1/2 in L x 7-1/4 in W x 6-23/32 in H
Frequency Rating60 Hz
Horsepower1-1/2 hp
ManufacturerEaton
Number of Poles3
Number of Wires2
Package TypeEACH
SeriesCPS
Terminal TypePressure Wire
Type1-Gang Angle Delayed Action Dead End Factory Sealed
Type / Style1-Gang Angle Delayed Action Factory Sealed
Voltage Rating125 to 250 VAC/480 VAC
Documents
Applications
Damp and Corrosive Areas, Industrial Facilities, Factories Facility, Power Distribution and Control and Wet Location Applications
Included
3/4 in Hub
Features
- CPS receptacles are equipped with a rotating mechanism which prevents complete withdrawal of the CPP plug-in one continuous movement
- CPS receptacles are factory sealed to simplify installation and wiring - external seals are not required
- With portable electrically operated devices such as motor-generator sets, compressors, conveyors, portable tools, lighting systems and similar equipment
- In locations which are hazardous due to the presence of flammable vapors or gases
- In petroleum refineries, chemical and petrochemical plants and other process industry facilities where similar hazards exist
- 3/8 to 7/8 in Dia cable
- Receptacles will take any of the plugs grouped in the bracket opposite the receptacle listings
- 7A, 1/2 hp, 480 VAC, csa certified units are rated at 600 vac at 7 a
- Grounding style two through extra pole and shell
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEC Compliant|CEC Class I Div 1, 2, Groups C, D|CSA C22.2 No. 30|UL 1203
