Appleton ENR5201

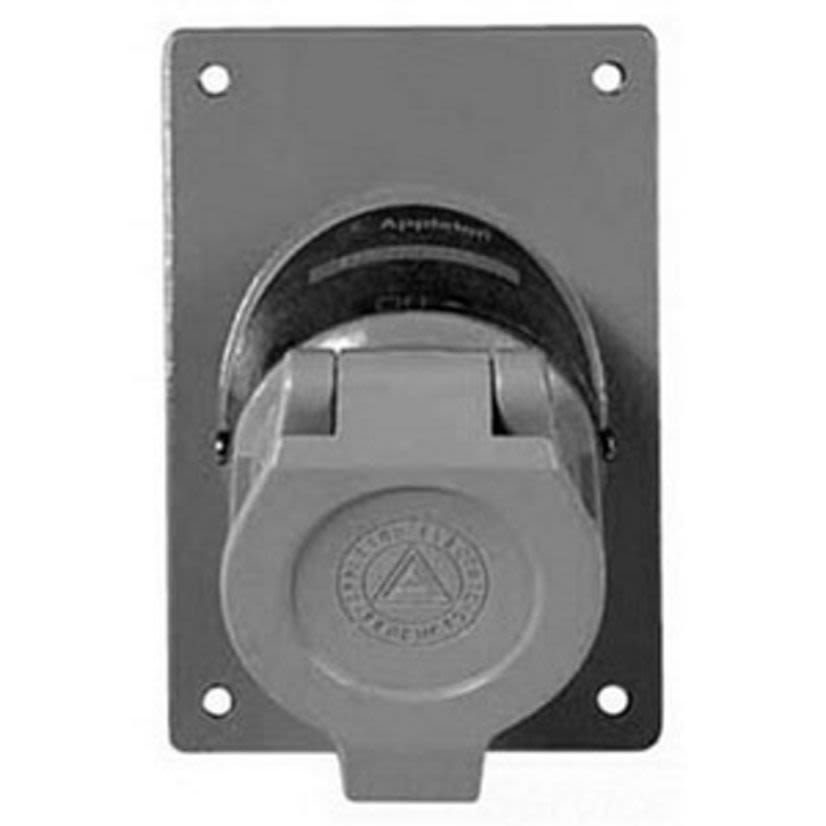

Appleton U-Line Contender ENR5201 Dust-Ignitionproof Replacement Explosionproof Receptacle Cover Assembly, 125 V AC, 20 A, 3 Poles, 2 Wires
Appleton ENR5201
Appleton U-Line Contender ENR5201 Dust-Ignitionproof Replacement Explosionproof Receptacle Cover Assembly, 125 V AC, 20 A, 3 Poles, 2 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ENR5201
Werner Part #1113019
UPC781381815024
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ENR5201
Werner Part #1113019
UPC781381815024
Product Description
Appleton U-Line Contender Explosionproof Receptacle Cover Assembly, Dust-Ignitionproof Replacement, 125 V AC, 20 A, 3 Pole, 2 Wires, NEMA 3RX NEMA, Copper Free Aluminum, 4.2 in H x 5 in W x 7 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions4.2 in H x 5 in W x 7 in D
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3RX
Number of Poles3
Number of Wires2
Package TypeEACH
TypeDust-Ignitionproof Replacement
Type / StyleDust-Ignitionproof Replacement
Voltage Rating125 V AC
Documents
Applications
ECP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications
Warranty
Limited
Features
- Covers are UL Listed when used with Contender series back boxes
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Fiberglass reinforced thermoset polyester insulating blocks
- Dead front design receptacle is not energized until plug is fully inserted and switch is engaged
- ECP plug fits U-Line explosionproof receptacles
- U-Line Contender receptacles only available for use in combination with 1 and 2-gang EDS boxes incorporating such devices as pilot lights, switches and push buttons
Specifications
Standards/Approvals: Class I, Groups C, D, Class I, Div 2, Group B, Class I, Zone 1, Group IIB, Class I, Zone 2, Group IIB + H2, Class II, Groups F, G, Class III|UL File No. E10784|UL 1203/1010/894
