Appleton EFSC175-2023

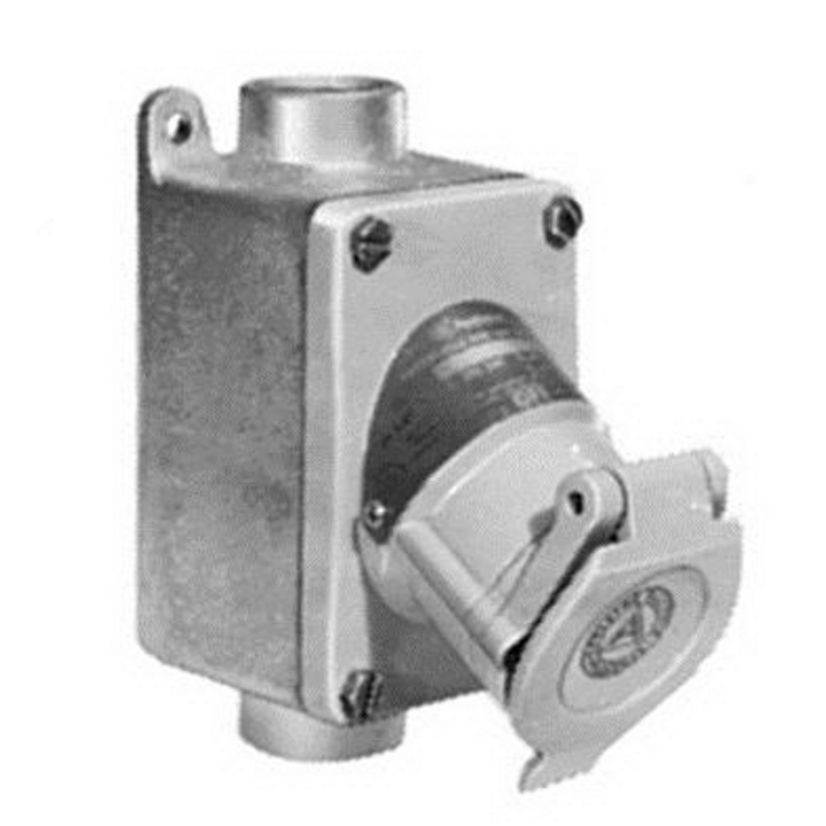

Appleton U-Line EFSC175-2023 1-Gang Dust-Ignitionproof Feed Through Explosionproof Receptacle Assembly With Mounting Box, 125 V AC, 20 A, 3 Poles, 2 Wires
Appleton EFSC175-2023
Appleton U-Line EFSC175-2023 1-Gang Dust-Ignitionproof Feed Through Explosionproof Receptacle Assembly With Mounting Box, 125 V AC, 20 A, 3 Poles, 2 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFSC175-2023
Werner Part #15788
UPC781381284004
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFSC175-2023
Werner Part #15788
UPC781381284004
Product Description
Appleton U-Line Explosionproof Receptacle Assembly, 1-Gang Dust-Ignitionproof Feed Through, 125 V AC, 20 A, 1 hp, 3 Pole, 2 Wires, NEMA 3/3R NEMA, Copper Free Aluminum, 6.13 in H x 3 in W x 5.69 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions6.13 in H x 3 in W x 5.69 in D
Horsepower1 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3/3R
Number of Poles3
Number of Wires2
Package TypeEACH
Type1-Gang Dust-Ignitionproof Feed Through
Type / Style1-Gang Dust-Ignitionproof Feed Through
Voltage Rating125 V AC
Documents
Applications
ECP and NCP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications
Warranty
Limited
Features
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Glass filled reinforced polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles
- Intermateable with competitor's plugs of like configurations
Specifications
Standards/Approvals: Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G, Class III|UL File No. E10784/E81751|UL 1203/1010/894|CSA C22.2 No. 25/30/42/159|CSA File No. 038644|RoHS Compliant
