Appleton CESD-3034

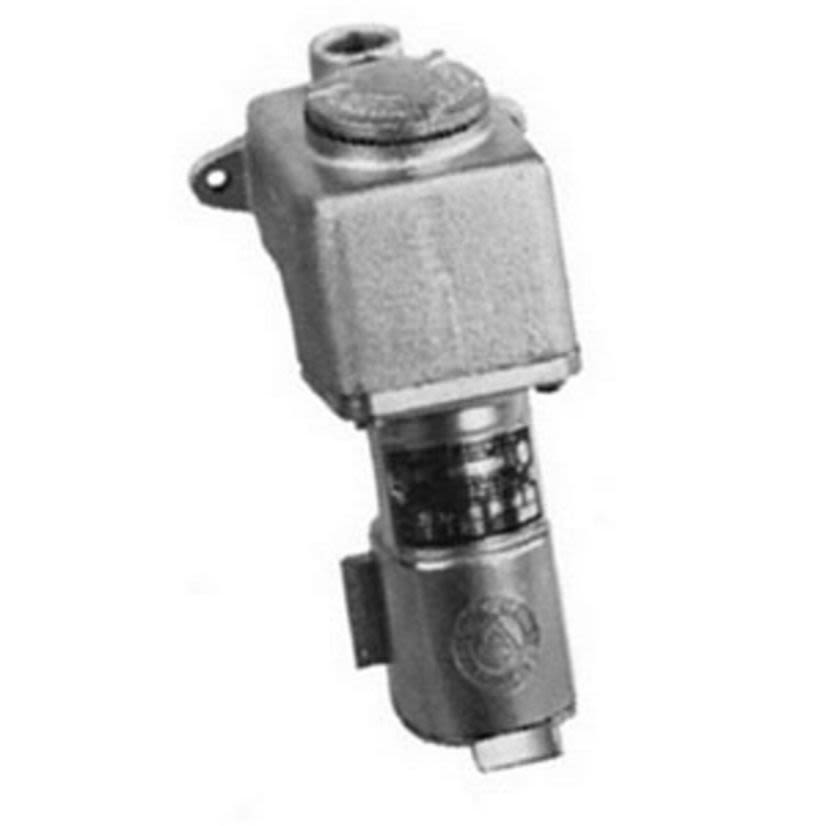

Appleton CESD-3034 CESD 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 30 A, 4 Poles, 3 Wires
Appleton CESD-3034
Appleton CESD-3034 CESD 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 30 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CESD-3034
Werner Part #1139219
UPC781381188258
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CESD-3034
Werner Part #1139219
UPC781381188258
Product Description
Appleton Explosionproof Receptacle, 3-Phase Feed Through Grounding Style 2, Series: CESD, 125 to 250 V AC, 30 A, 3 hp, 4 Pole, 3 Wires, NEMA 3R NEMA Rating, Pressure Wire Terminal, Copper Free Aluminum, 8.69 in H x 5.13 in W x 6-3/4 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions8.69 in H x 5.13 in W x 6-3/4 in D
Horsepower3 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3R
Number of Poles4
Number of Wires3
Package TypeEACH
SeriesCESD
Terminal TypePressure Wire
Type3-Phase Feed Through Grounding Style 2
Type / Style3-Phase Feed Through Grounding Style 2
Voltage Rating125 to 250 V AC
Documents
Applications
CPH Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors and Pumps Applications
Included
Vertical Feed-Thru Hubs
Warranty
Limited
Features
- Shell and extra pole grounding style 2
- Delayed action safety construction with Slide-Lok design
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Fiberglass reinforced polyester insulating blocks
Specifications
Standards/Approvals: ARRA Compliant|RoHS Compliant|Class I, Div 1 and 2, Groups D|UL 1010 (UL 1203), 894, 1682, 1686|UL File No. E10784|CSA C22 No. 30/159/182.1
