Appleton CES-6034

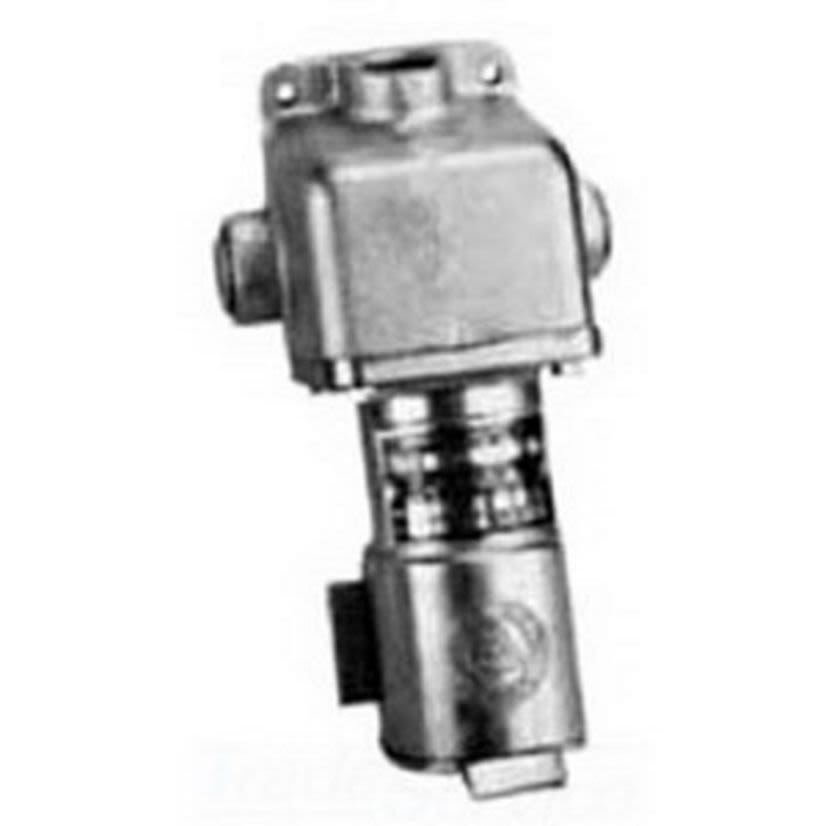

Appleton CES-6034 CES 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 60 A, 4 Poles, 3 Wires
Appleton CES-6034
Appleton CES-6034 CES 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 60 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CES-6034
Werner Part #1111205
UPC781381188159
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CES-6034
Werner Part #1111205
UPC781381188159
Product Description
Appleton Explosionproof Receptacle, 3-Phase Feed Through Grounding Style 2, Series: CES, 125 to 250 V AC, 60 A, 5 hp, 4 Pole, 3 Wires, Pressure Wire Terminal, Copper Free Aluminum, 11.88 in H x 7.31 in W x 6.88 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions11.88 in H x 7.31 in W x 6.88 in D
Horsepower5 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
Number of Poles4
Number of Wires3
Package Height6.5 IN
Package Length12.5 in
Package TypeEACH
Package Weight15.75 lb
Package Width10 in
SeriesCES
Terminal TypePressure Wire
Type3-Phase Feed Through Grounding Style 2
Type / Style3-Phase Feed Through Grounding Style 2
Voltage Rating125 to 250 V AC
Documents
Applications
CPH Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors and Pumps Applications
Included
(1) Vertical and (2) Horizontal Feed-Thru Hubs
Warranty
Limited
Features
- Shell and extra pole grounding style 2
- Delayed action safety construction with Slide-Lok design
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Fiberglass reinforced polyester insulating blocks
Specifications
Standards/Approvals: Class I, Div 1 and 2, Groups C, D|UL 1010 (UL 1203), 894, 1682, 1686|UL File No. E10784|CSA C22 No. 30/159/182.1|RoHS Compliant
