Leviton 4720-C

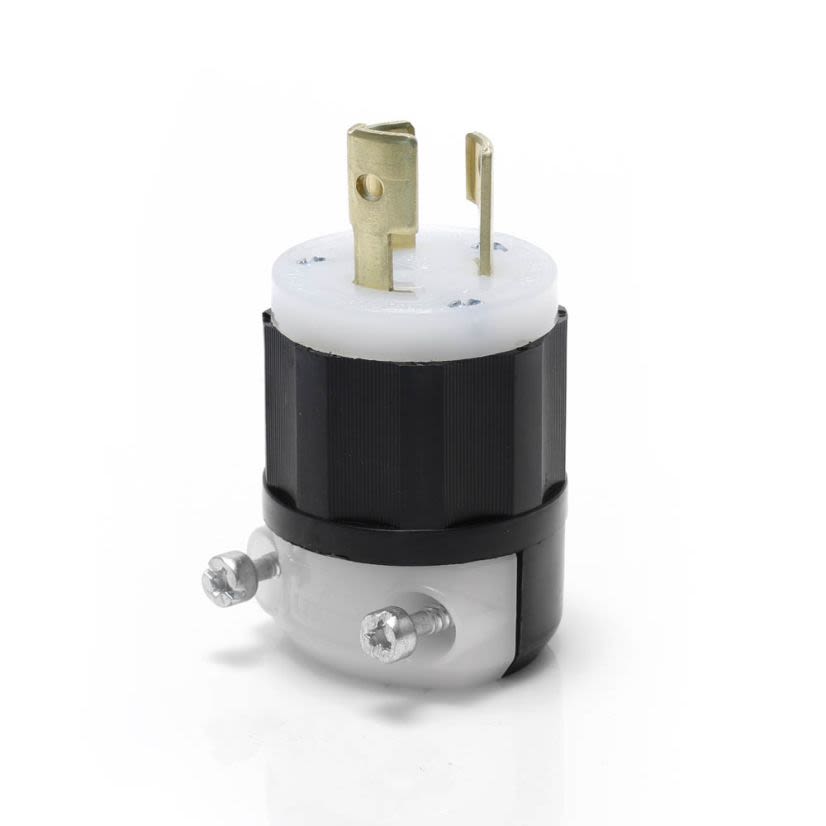

Leviton 4720-C 1-Phase Grounding Cable Mount Locking Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Leviton 4720-C
Leviton 4720-C 1-Phase Grounding Cable Mount Locking Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 21more info
|
BrandLeviton
MFG #4720-C
Werner Part #45401
UPC078477795491
In Stock: 21more info
|
BrandLeviton
MFG #4720-C
Werner Part #45401
UPC078477795491
Product Description
Leviton, 4720-C, Locking Plug, 1-Phase Grounding Cable Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA L5-15P NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 1.98 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUS
Dimensions1.53 in Dia x 1.98 in L
GradeIndustrial
Horsepower1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L5-15P
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type1-Phase Grounding Cable Mount
Type / Style1-Phase Grounding Cable Mount
Voltage Rating125 V AC
Applications
Industrial Applications
Warranty
Lifetime
Features
- Certified for current interrupting at full rated current
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
