Leviton 2615

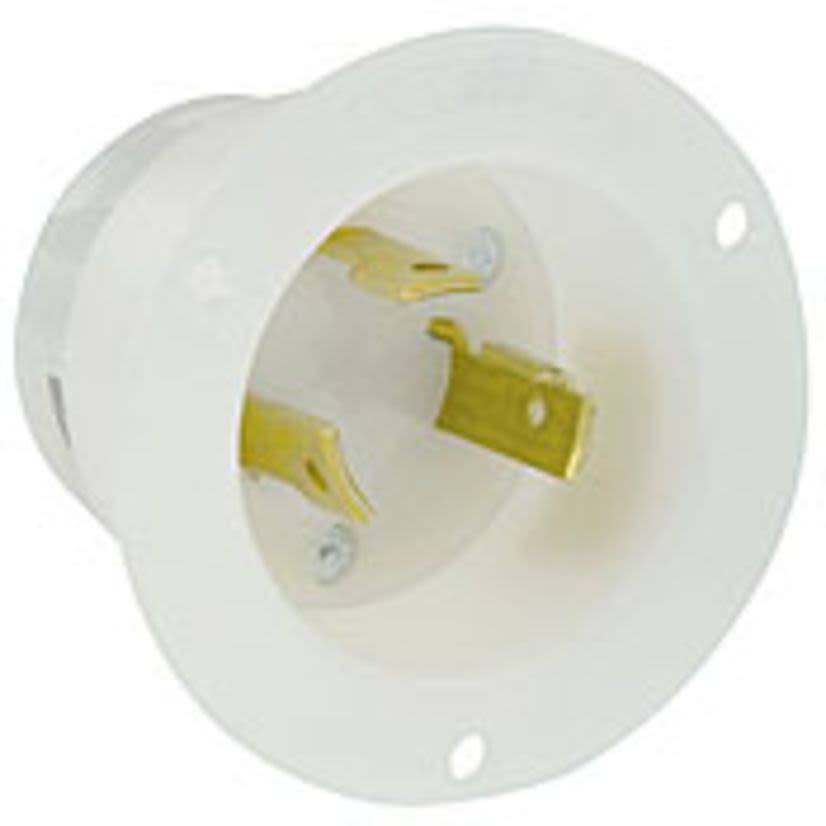

Leviton 2615 Grounding Receptacle Locking Flanged Inlet, 125 V AC, 30 A, 2 Poles, 3 Wires, White
Leviton 2615
Leviton 2615 Grounding Receptacle Locking Flanged Inlet, 125 V AC, 30 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2615
Werner Part #1310146
UPC078477806616
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2615
Werner Part #1310146
UPC078477806616
Product Description
Leviton, 2615, Locking Flanged Inlet, Grounding Receptacle, 125 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L5-30P NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.88 in Dia x 2.11 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions2.88 in Dia x 2.11 in H
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L5-30P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack Wire
TypeGrounding Receptacle
Type / StyleGrounding Receptacle
Voltage Rating125 V AC
Applications
Commercial Applications
Warranty
Lifetime
Features
- Full rated current limiting
- Rugged nylon flange fits flush and wont crack in high abuse applications
- Individual deep funneled chamfered wire wells guide each wire into rectangular chambers
- Wire clamps bundle stranded wire without cutting wire strands
- Ratings and NEMA ID permanently marked on device for identification
- Flange mounting
- Withstands 2000 VAC per UL 498 dielectric voltage
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- 18 to 10 AWG terminal accommodation
- Nylon cover and base, solid brass line contacts, 10 to 32 brass terminal screws, 8 to 32 brass grounding screw, thermoplastic nylon strap material
- Brass-hot, green ground, white-neutral terminal ID
- Ratings are permanently marked on device product ID
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No.42 File No. LR406|Federal Specification WC596|UL 498 File No. E13393|UL94 V-2 Flammability Rating
