Leviton 2515

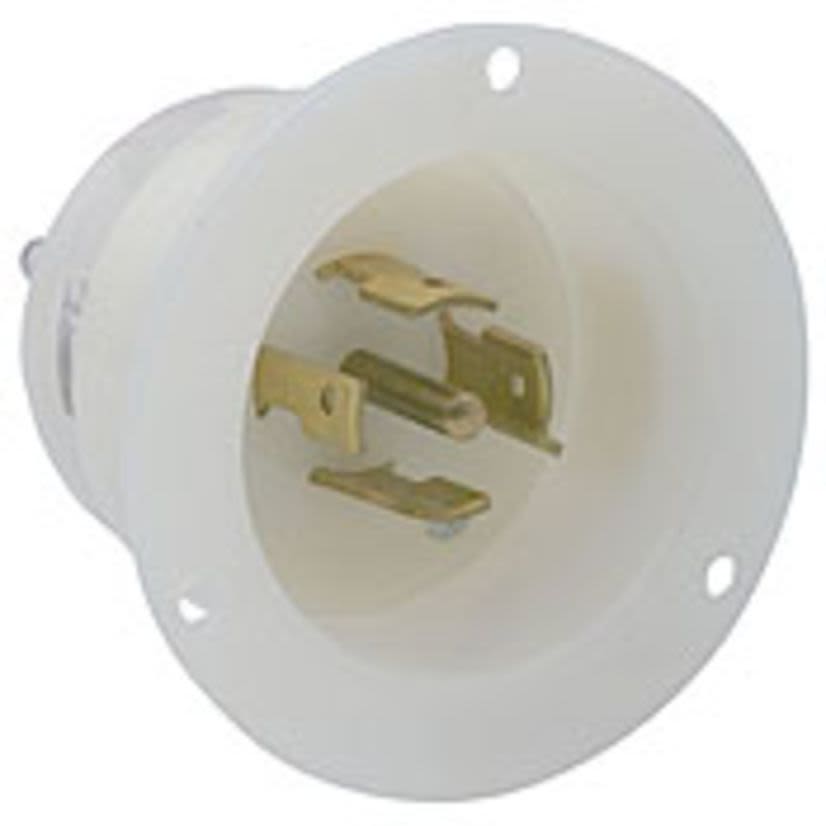

Leviton 2515 3-Phase Grounding Receptacle Locking Flanged Inlet, 120/208 V AC, 20 A, 4 Poles, 5 Wires, White
Leviton 2515
Leviton 2515 3-Phase Grounding Receptacle Locking Flanged Inlet, 120/208 V AC, 20 A, 4 Poles, 5 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2515
Werner Part #1308707
UPC078477806524
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2515
Werner Part #1308707
UPC078477806524
Product Description
Leviton, 2515, Locking Flanged Inlet, 3-Phase Grounding Receptacle, 120/208 V AC, 20 A, 2 hp, 4 Pole, 5 Wires, NEMA L21-20P NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions2.5 in Dia x 1.78 in H
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L21-20P
Number of Poles4
Number of Wires5
Temperature Rating-40 to 60 deg C
Terminal TypeBack Wire
Type3-Phase Grounding Receptacle
Type / Style3-Phase Grounding Receptacle
Voltage Rating120/208 V AC
Applications
Commercial Applications
Features
- 14 to 8 AWG terminal accommodation, grounding
- 2000 VAC minimum dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Nylon face material, solid brass line contacts
- #10-32 brass terminal screws
- #8-32 brass grounding screws
- Thermoplastic nylon strap
- Brass-hot, green ground, white-neutral terminal ID
- Ratings are permanently marked on device product ID
- Rugged nylon flange fits flush and wont crack in high abuse applications
- Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
- Wire clamps bundle stranded wire without cutting wire strands
Warranty
Lifetime
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|UL94 V-2 Flammability Rating|Federal Specification WC596
