Woodhead 14W47-Y

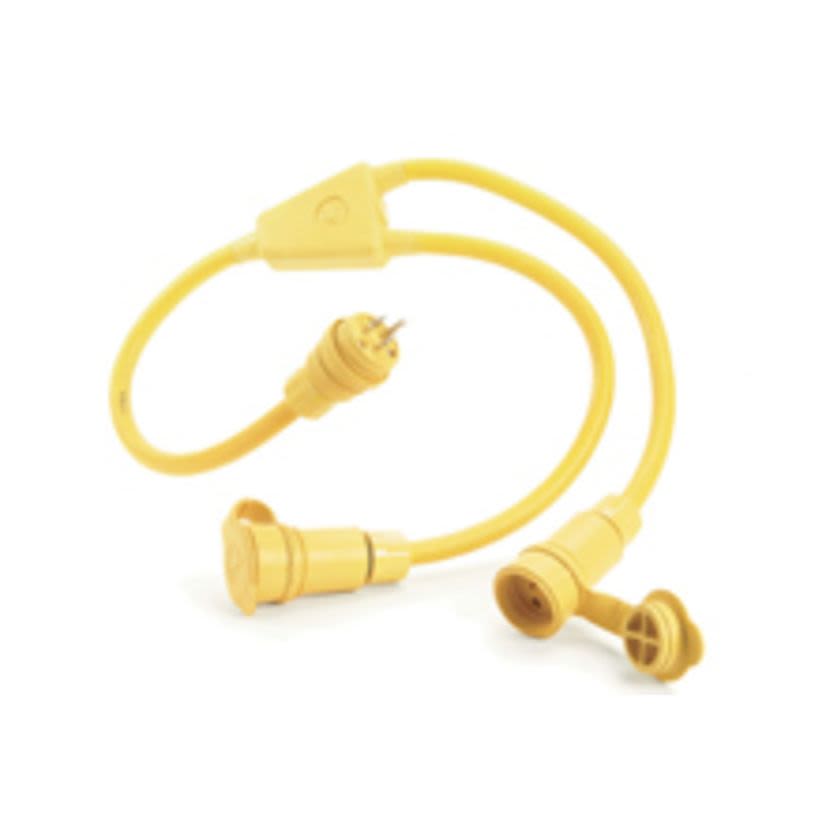

Woodhead 14W47-Y 130154 Male/Female Standard Molded Y Cordset, 15 A at 125 V AC, 3 ft L Cord
Woodhead 14W47-Y
Woodhead 14W47-Y 130154 Male/Female Standard Molded Y Cordset, 15 A at 125 V AC, 3 ft L CordNon-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #14W47-Y
Werner Part #4069093
UPC786788014001
Non-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #14W47-Y
Werner Part #4069093
UPC786788014001
Product Description
Woodhead Molded Y Cordset, Male/Female Standard, Series: 130154, 15 A at 125 V AC Electrical Rating, 3 ft Cord Length, 12 AWG Conductor, Duplex Receptacle, IP67 Enclosure, -40 to 75 deg C, Rubber, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorYellow
Conductor size12 AWG
Country of OriginMX
Electrical Ratings15 A at 125 V AC
Enclosure TypeIP67
ManufacturerMolex
MaterialRubber
Package TypePIECE
Return & Cancellation PolicyNonreturnable/Noncancellable
Series130154
Size3 ft
Temperature Rating-40 to 75 deg C
TypeMale/Female Standard
Type / StyleMale/Female Standard
Documents
Applications
For closure caps and additional support with strain relief grips
Features
- F2 body 1/2 in cord grip
- 2-pole/3-wire configuration
- SOW cord
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
Specifications
Standards/Approvals: UL E38085|CSA LL52750
