Woodhead 70W33M123GF

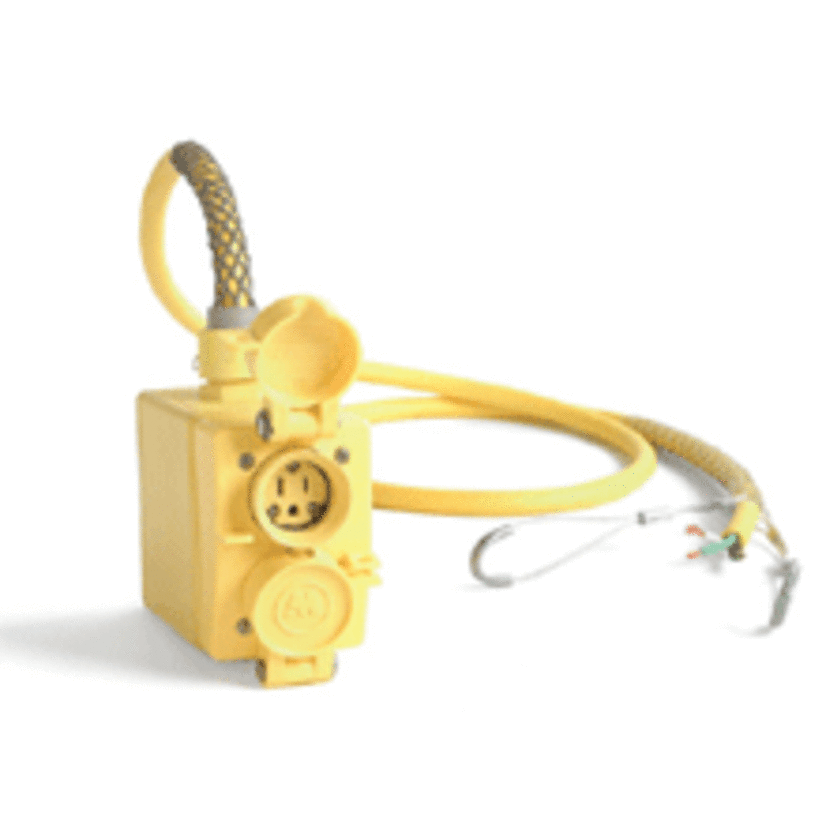

Woodhead Watertite 70W33M123GF 130138 Multiple Outlet Pendant Box, 120 V AC, 20 A
Woodhead 70W33M123GF
Woodhead Watertite 70W33M123GF 130138 Multiple Outlet Pendant Box, 120 V AC, 20 ANon-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #70W33M123GF
Werner Part #209976
UPC786788283124
Non-stock product. Available to order - lead time may vary.
BrandWoodhead
MFG #70W33M123GF
Werner Part #209976
UPC786788283124
Product Description
Woodhead Watertite Multiple Outlet Pendant Box, Series: 130138, 120 V AC, 20 A, NEMA 4 Enclosure, NEMA 5-20 Rating, Rubber
Attributes
Documents
Features
Specifications
Attributes
Country of OriginMX
Dimensions11.25 in L x 8.12 in H x 9.25 in D
Enclosure TypeNEMA 4
ManufacturerMolex
MaterialRubber
NEMA RatingNEMA 5-20
Package TypePIECE
Return & Cancellation PolicyNonreturnable/Noncancellable
Series130138
Type / StyleMultiple Outlet Box
Voltage Rating120 V AC
Documents
Features
- NEoTEX paracril OZO rubber portable pendant drop yields the best performance for abrasion, chemical exposure and temperature extremes
- Pre-wired, one or two industrial duty, single receptacles recessed for indoor or outdoor use designed to save you time
- Watertite receptacles certified to provide protection for damp or wet locations and keep personnel safe
- MAX-LOC non-metallic strain relief included as standard to provide maximum cord pullout resistance atop the pendant
- Woodhead hanging double eye support grip included for ease of installation
- High performance SOOW cords are standard for optimum performance
- When properly mated with a Woodhead Watertite plug the connector or receptacle connection meets the requirements of NEMA type 4X
- 15 ft length and 0.6 in diameter cord, 12/3 SOOW cord
- F3 body 3/4 in cord grip
- Portable mounting style
- Nylon industrial duty receptacles
- Stainless steel cover face screws and cover springs
- Heavy-duty MAX-LOC nylon mesh and F3 3/4 in compression nut strain relief, pendant
- One duplex receptacle, flip lids
- Double eye wire mesh support grip
- 50/60 Hz frequency
- Manual GFCI reset
Specifications
Standards/Approvals: RoHS Compliant
