Woodhead 9242

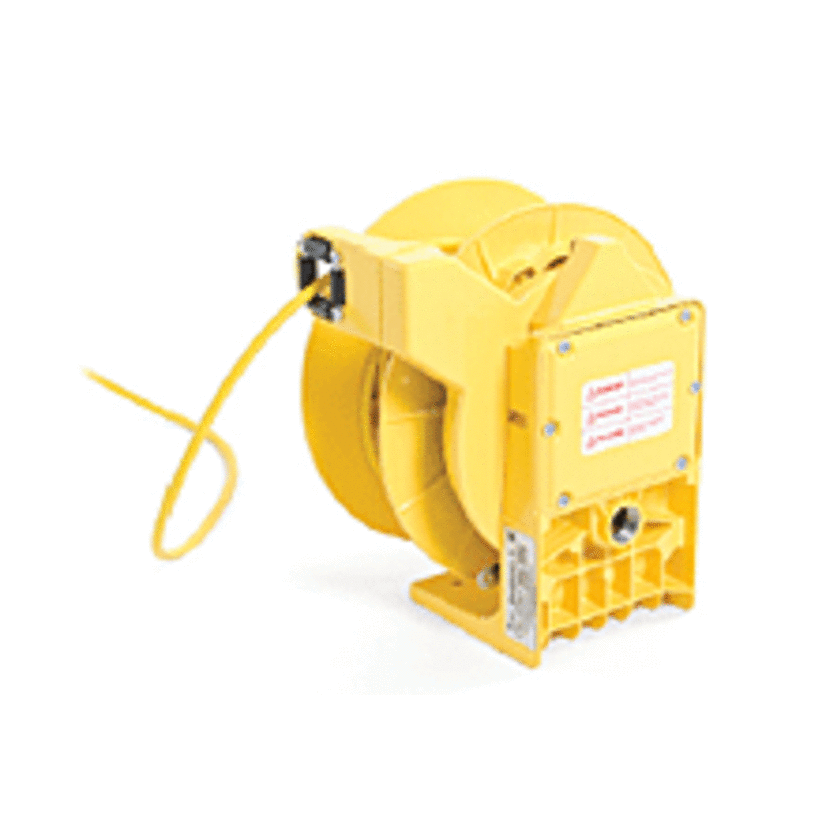

Woodhead 9242 130084 Cable Reel, 600 V AC, 22 A, 20 ft L Cord, 10 AWG Conductor
Woodhead 9242
Woodhead 9242 130084 Cable Reel, 600 V AC, 22 A, 20 ft L Cord, 10 AWG ConductorNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Woodhead Cable Reel, Series: 130084, 600 V AC, 22 A, 20 ft Cord Length, 10 AWG Conductor, Rigid Base Reel Mounting, Industrial Grade, Aluminum, Yellow, 9.62 in W x 13.5 in D x 14.5 in H Dimensions
Attributes
Documents
Features
Attributes
ColorYellow
Conductor size10 AWG
Country of OriginMX
Dimensions9.62 in W x 13.5 in D x 14.5 in H
GradeIndustrial
ManufacturerMolex
MaterialAluminum
Package TypePIECE
Return & Cancellation PolicyNonreturnable/Noncancellable
Series130084
Size50 ft
Type / StyleCable Reel
Voltage Rating600 V AC
Documents
Features
- NEMA 4 enclosure provides protection to water or dust, indoor and out
- Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
- Design prohibits annoying lock-out when cable is fully extended
- Containerized main spring allow for safe, simple handling and replacement
- Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
- 1 in NPT primary cable entry
- Cast aluminum with yellow powder coat finish construction
- Working end, flying leads and ball stop not included
- Easily disengaged as needed ratchet lock
- Easily adjusted tension
- Large, easy access spring junction box
- 10/3 SOW cable
