Appleton RL5360

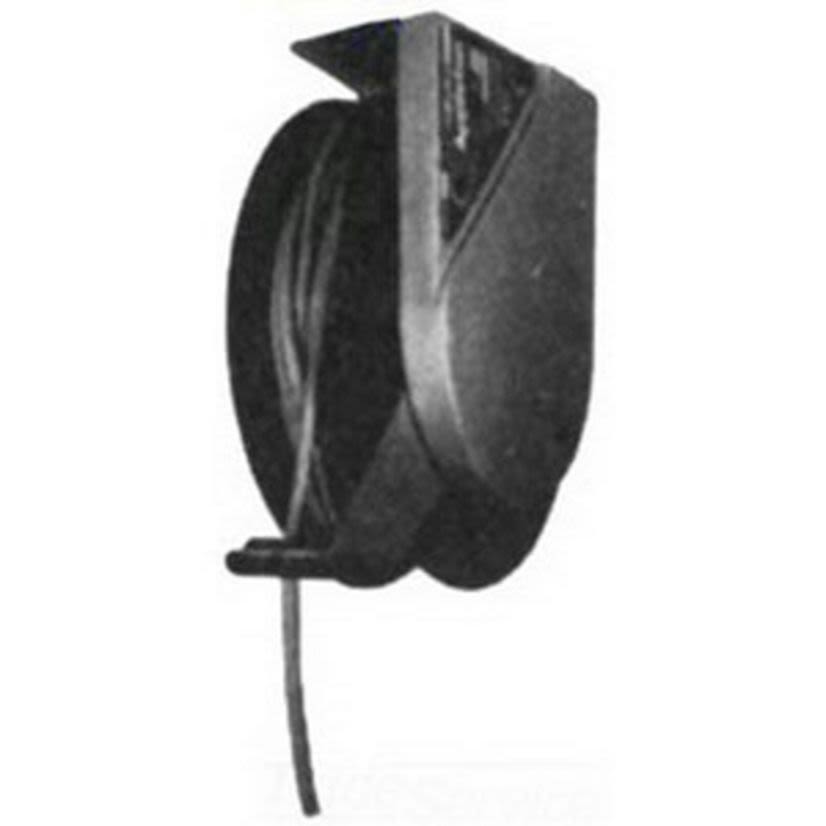

Appleton RL5360 RL5000 Grounded Portable Cord Reel With Locking Ratchet, 125 V AC, 9 A, 50 ft L Cord, 16 to 13 AWG Conductor
Appleton RL5360
Appleton RL5360 RL5000 Grounded Portable Cord Reel With Locking Ratchet, 125 V AC, 9 A, 50 ft L Cord, 16 to 13 AWG ConductorNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #RL5360
Werner Part #2373814
UPC781381672726
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #RL5360
Werner Part #2373814
UPC781381672726
Product Description
Appleton Cord Reel, Grounded Portable, Series: RL5000, 125 V AC, 9 A, 50 ft Cord, 16 to 13 AWG Conductor, Yellow Cord, Steel Reel, Commercial/Industrial Grade, Aluminum, Gray, 12.28 in H x 11.63 in W x 5.12 in D
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorGray
Conductor size16 to 13 AWG
Country of OriginUS
Dimensions12.28 in H x 11.63 in W x 5.12 in D
GradeCommercial/Industrial
ManufacturerEmerson Electric
MaterialAluminum
Package TypeEACH
SeriesRL5000
Size45 ft
TypeGrounded Portable
Type / StyleGrounded Portable
Voltage Rating125 V AC
Documents
Applications
Industrial/MRO, Warehouse, Loading Docks, Commercial Building, OEM Machinery and Equipment, OSHA Regulated Service Garages, Muffler and Oil Change Shops, Institutions and State Agency Applications
Warranty
1 Year
Features
- All steel construction provides added strength for rugged commercial/industrial dry location service
- Collector ring and brush assembly rated at 15 A, 250 VAC, three conductor single-phase and four conductor 3-phase construction
- 3 ft/0.9 m lead in power cord provides portable connection installation
- Compact design offers long cable capacity in a small unit, advantageous to the OEM manufacturers
- Over hung drum design offers simple field cable tension adjustment without cable disconnection
- Adjustable cable guide provides for various reel mounting positions
- Cable locking ratchet included as standard holds cable at desired length, ratchet can be disengaged when constant cable tension is desired
- Reels having hand lamp without switch in the handle are operated by an internal automatic switch located inside the reel
- Power to the hand lamp is actuated when cable is pulled out at any length and ratchet is locked
- Power is automatically turned off when all cable is retracted back into the reel
- Steel base, drum, spring cartridge cover and cable guide arm, aluminum brush cover, acetal cable outlet guide, brass collector rings, high density copper graphite brushes, high visibility yellow type SJOOW-A thermoset, 300 VAC rating cord
- Gray hammer epoxy/polyester powder coat base and housing, black epoxy powder coat drum
Specifications
Standards/Approvals: UL 355 File No. E4961 Listed|CSA LR3060|NEC Compliant
