Leviton 5243-W

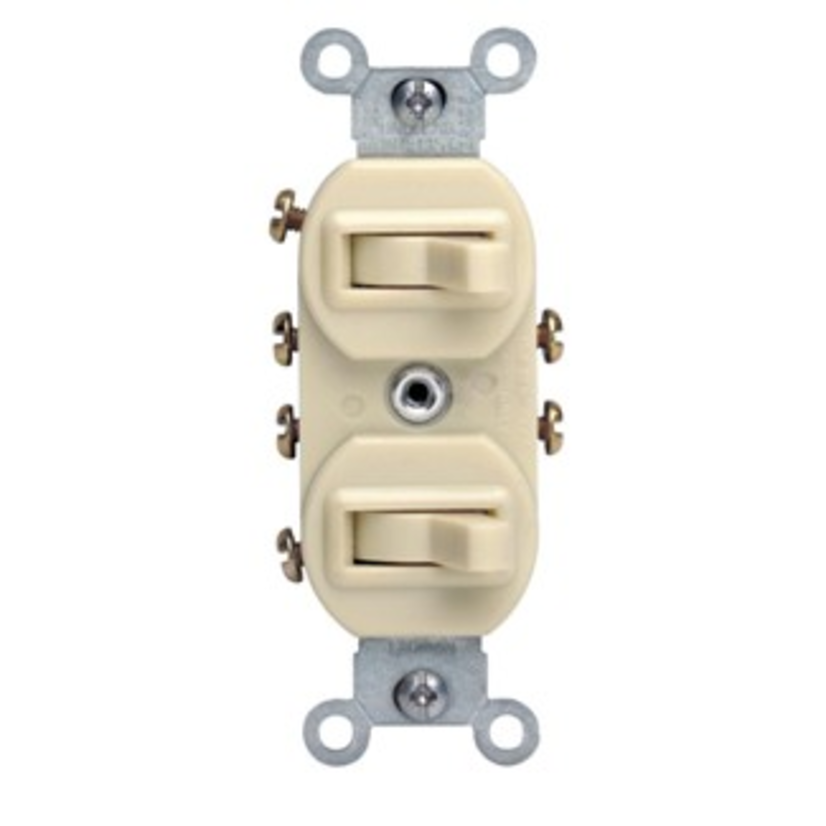

Leviton 5243-W 3-Way Duplex Non-Grounding AC Combination Switch, 15 A, 125 V AC, 1800 W, 3 Poles
Leviton 5243-W
Leviton 5243-W 3-Way Duplex Non-Grounding AC Combination Switch, 15 A, 125 V AC, 1800 W, 3 PolesIn Stock: 1more info
|
BrandLeviton
MFG #5243-W
Werner Part #45511
UPC078477229606
In Stock: 1more info
|
BrandLeviton
MFG #5243-W
Werner Part #45511
UPC078477229606
Product Description
Leviton AC Combination Switch, 3-Way Duplex Non-Grounding, 15 A, 125 V AC, 1800 W Electrical Rating, 3 Pole, 15 A at 120/277 VAC Contact, NEMA 5-15R Enclosure, Surface/Wall Plate Mounting, 4.2 in H x 1.62 in W x 16 in D Size, 100 Operating Cycles, Environmental Conditions: -40 to 120 deg C Operating Temperature, Thermoplastic, White
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorWhite
Country of OriginMX
Electrical Ratings15 A, 125 V AC, 1800 W
Enclosure TypeNEMA 5-15R
GTIN00078477229606
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface/Wall Plate
NEMA RatingNEMA 5-15R
Number of Poles3
Package TypeEACH
Series3-Way Duplex Non-Grounding
Size4.2 in H x 1.62 in W x 16 in D
Temperature Rating-20 to 60 deg C Operating Temperature
Type3-Way Duplex Non-Grounding
Type / Style3-Way Duplex Non-Grounding
Documents
Applications
Commercial Applications
Features
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- Steel strap and thermoplastic toggle actuator
- Side wired terminal
- Dielectric voltage withstands 1500 VAC for 1 min
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 111 File No. 152105/LR3413|NOM 057|NEMA WD-1/WD-6|UL94 V-2 Flammability Rating|UL File No. E7458/20
Warranty
10 Years Limited
