Leviton 5225-I

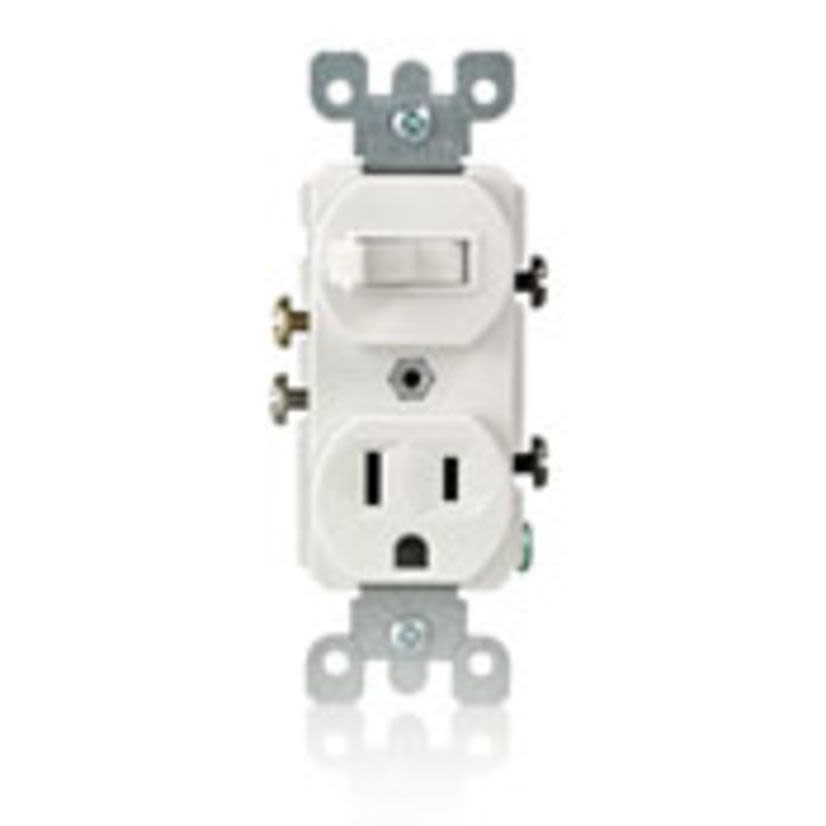

Leviton 5225-I Duplex Combination Switch and Receptacle, 15 A, 120/277 V AC, 1/2 hp at 120 V AC, 2 hp at 240/277 V AC, 1 Poles, 14 to 12 AWG Wire
Leviton 5225-I
Leviton 5225-I Duplex Combination Switch and Receptacle, 15 A, 120/277 V AC, 1/2 hp at 120 V AC, 2 hp at 240/277 V AC, 1 Poles, 14 to 12 AWG WireIn Stock: 3more info
|
BrandLeviton
MFG #5225-I
Werner Part #45502
UPC078477226605
In Stock: 3more info
|
BrandLeviton
MFG #5225-I
Werner Part #45502
UPC078477226605
Product Description
Leviton Combination Switch and Receptacle, Duplex, 15 A, 120/277 V AC, 1/2 hp at 120 V AC, 2 hp at 240/277 V AC Electrical Rating, 1 Pole, 14 to 12 AWG Wire, NEMA 5-15R Enclosure, Surface/Wall Plate Mounting, Grounded Grounding Style, Commercial Grade, Side Wire Terminal, 1500 VAC Dielectric Strength, Thermoplastic, Ivory, 4.2 in H x 1.62 in W x 16 in D
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorIvory
Country of OriginMX
Dimensions4.2 in H x 1.62 in W x 16 in D
Electrical Ratings15 A, 120/277 V AC, 1/2 hp at 120 V AC, 2 hp at 240/277 V AC
Enclosure TypeNEMA 5-15R
GradeCommercial
GTIN00078477226605
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface/Wall Plate
NEMA RatingNEMA 5-15R
Number of Poles1
Package TypeEACH
SeriesDuplex
Size of Wire14 to 12 AWG
Terminal TypeSide Wire
TypeDuplex
Type / StyleDuplex
Documents
Applications
Commercial Applications
Features
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- 1/2 hp at 120 VAC 12 a maximum amperage AC power rating
- -40 to 120 deg C temperature rating
- Steel strap and thermoplastic toggle actuator
- 15 A, 120 VAC switch, 125 VAC receptacle electrical rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|UL 20 File No. E7458|CSA C22.2 No.111/152105/LR3413|NOM 057|NEMA WD1/WD6|UL94 V-2 Flammability Rating
Warranty
2 Years Limited
