Decora 5335-I

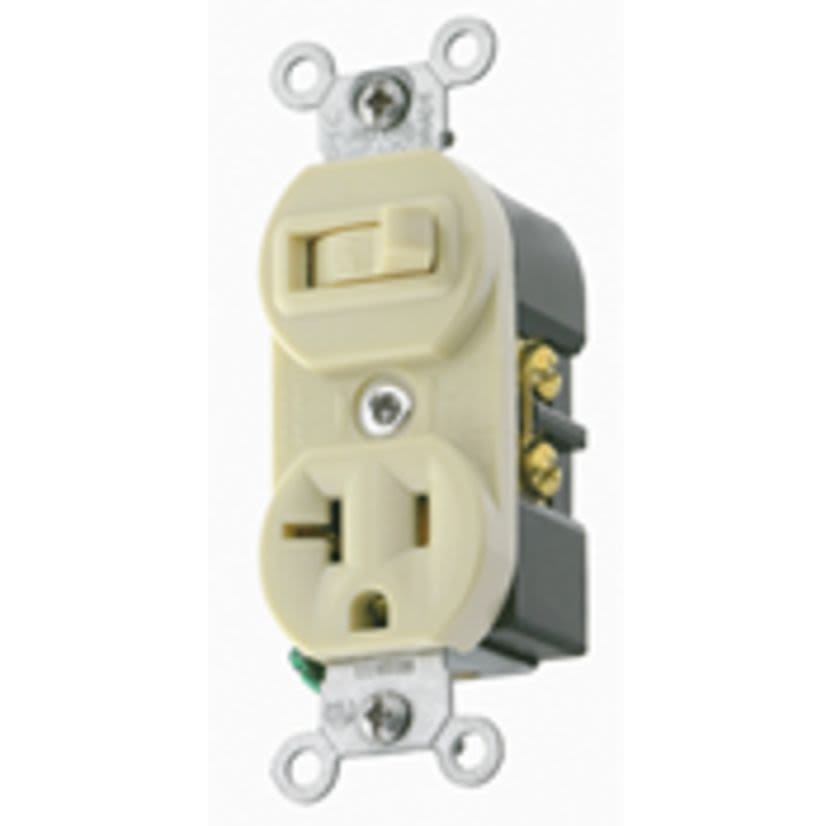

Leviton Decora Cheetah 5335-I Combination Duplex Style Grounding AC Switch, 20 A, 120/277 V AC, 125 V AC, 1 Poles, 3 Wires, 14 to 12 AWG Wire
Decora 5335-I
Leviton Decora Cheetah 5335-I Combination Duplex Style Grounding AC Switch, 20 A, 120/277 V AC, 125 V AC, 1 Poles, 3 Wires, 14 to 12 AWG WireNon-stock product. Available to order - lead time may vary.
BrandDecora
MFG #5335-I
Werner Part #45565
UPC078477233436
Non-stock product. Available to order - lead time may vary.
BrandDecora
MFG #5335-I
Werner Part #45565
UPC078477233436
Product Description
Leviton Decora Cheetah AC Switch, Combination Duplex Style Grounding, 20 A, 120/277 V AC, 125 V AC Electrical Rating, 1 Pole, 3 Wires, 14 to 12 AWG Wire, NEMA 5-20R Enclosure, Wall/Surface Mounting, Commercial Grade, Side Wire Terminal, Thermoplastic, Ivory, 4.2 in H x 1.62 in W x 16 in D
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorIvory
Country of OriginMX
Dimensions4.2 in H x 1.62 in W x 16 in D
Electrical Ratings20 A, 120/277 V AC, 125 V AC
Enclosure TypeNEMA 5-20R
GradeCommercial
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeWall/Surface
Number of Poles1
Number of Wires3
Package TypeEACH
SeriesDecorator
Size of Wire14 to 12 AWG Cu
Terminal TypeSide Wire
TypeCombination Duplex Style Grounding
Type / StyleCombination Duplex Style Grounding
Documents
Applications
Commercial Applications
Warranty
2 Years Limited
Features
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-off tabs on devices with switches permit conversion to separate feeds
- 120 VAC (switch), 125 VAC (receptacle)
- -40 to 120 deg C operating temperature
- Toggle actuator
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C222.2 No. 111/152105 File No. LR3413|NOM 057|UL 20 File No. E7458|UL94 V-2 Flammability Rating|NEMA WD1/WD6
