Leviton 5246-I

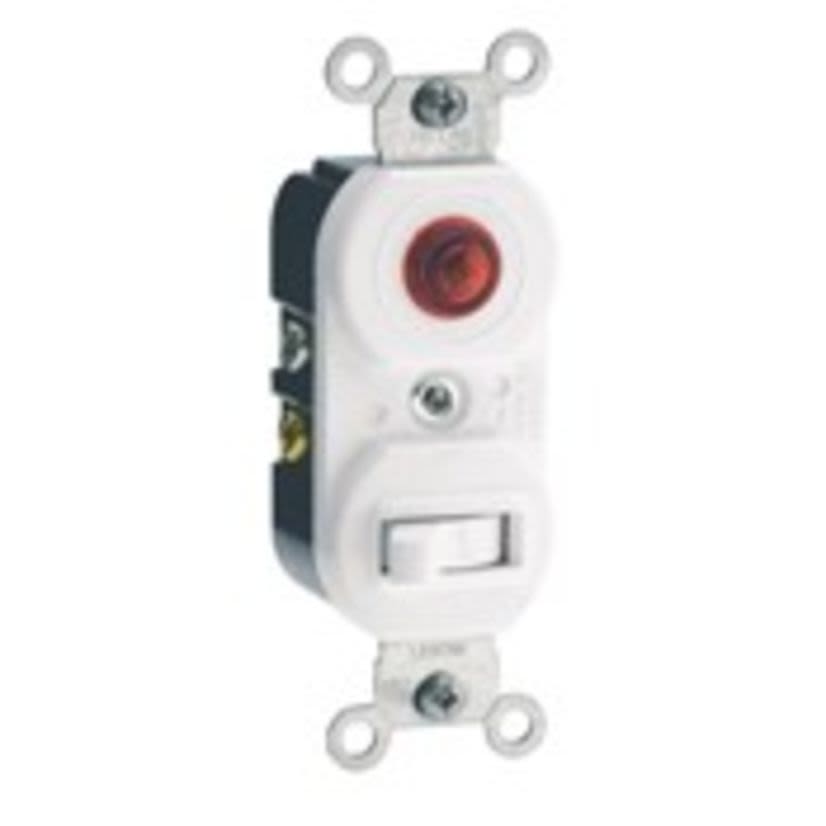

Leviton 5246-I 3-Way Duplex Non-Grounding AC Combination Switch, 120 V AC, 12 A
Leviton 5246-I
Leviton 5246-I 3-Way Duplex Non-Grounding AC Combination Switch, 120 V AC, 12 ANon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #5246-I
Werner Part #2285750
UPC078477039830
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #5246-I
Werner Part #2285750
UPC078477039830
Product Description
Leviton AC Combination Switch, 3-Way Duplex Non-Grounding, 120 V AC, 12 A, Neon Pilot Lamp, Toggle Action, NEMA 5-15R Enclosure, Surface Mounting, Side Wire Terminal, Thermoplastic, Ivory
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
ColorIvory
Country of OriginMX
Enclosure TypeNEMA 5-15R
Lamp TypeNeon Pilot
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Package TypeEACH
Temperature Rating-40 to 120 deg C
Terminal TypeSide Wire
Type3-Way Duplex Non-Grounding
Type / Style3-Way Duplex Non-Grounding
Voltage Rating120 V AC
Documents
Applications
Commercial Applications
Included
Ground Screw
Warranty
10 Years
Features
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- All devices have a grounding screw, except where noted
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fit in standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- 1/2 hp power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified
