EATON TRAFGF15W

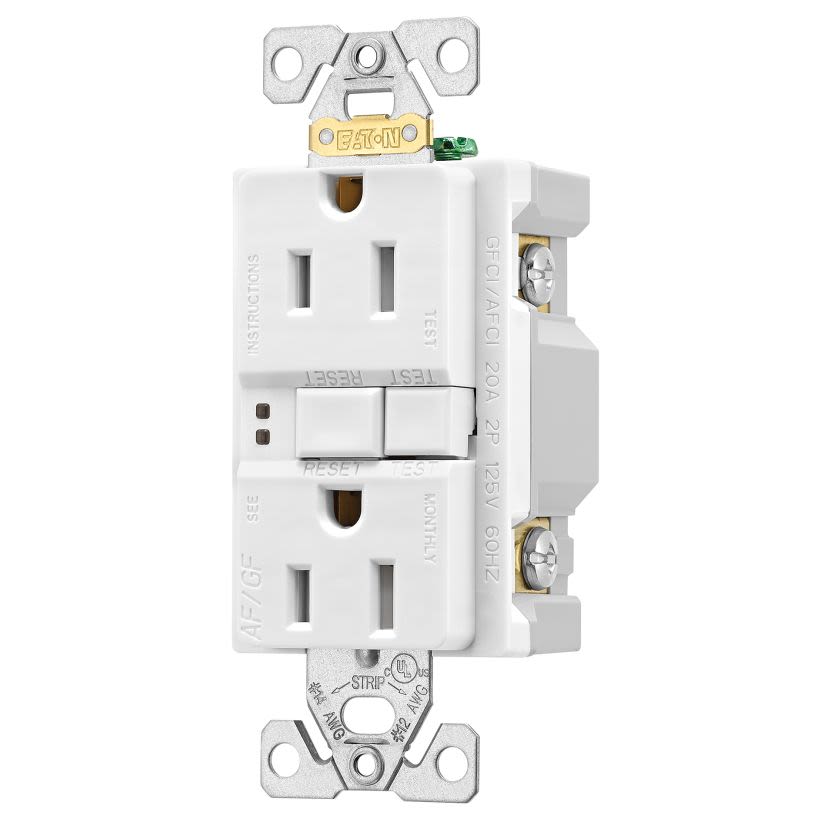

EATON Eaton Wiring Devices TRAFGF15W Duplex Self-Test Tamper-Resistant AFCI/GFCI Receptacle With Standard Size Thermoplastic Wallplate, 125 VAC, 15 A, 2 Poles, 3 Wires, White
EATON TRAFGF15W
EATON Eaton Wiring Devices TRAFGF15W Duplex Self-Test Tamper-Resistant AFCI/GFCI Receptacle With Standard Size Thermoplastic Wallplate, 125 VAC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandEATON
MFG #TRAFGF15W
Werner Part #4198033
UPC032664747601
Non-stock product. Available to order - lead time may vary.
BrandEATON
MFG #TRAFGF15W
Werner Part #4198033
UPC032664747601
Product Description
EATON Wiring Devices AFCI/GFCI Receptacle, Duplex Self-Test Tamper-Resistant, Series: TRAFGF15, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Specification Grade, -31 to 150.8 deg F, Screw Terminal, Thermoplastic/Polypropylene, White, 1.3 in W x 1.27 in D x 4.2 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
ColorWhite
Country of OriginChina
Dimensions1.3 in W x 1.27 in D x 4.2 in H
Frequency Rating60 Hz
GradeSpecification
ManufacturerEaton
MaterialThermoplastic/Polypropylene
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesTRAFGF15
Temperature Rating-31 to 150.8 deg F
Terminal TypeScrew
TypeDuplex Self-Test Tamper-Resistant
Voltage Rating125 V AC
Documents
Applications
Residential Bldgs and Facilities, Residential Bldgs, Facilities and Other Applications
Features
- Provides both arc fault protection per UL 1699A and ground fault protection per UL 943 in one convenient device
- Protects from both series and parallel arcs downstream from the outlet Branch circuit (OBC) AF/GF receptacle
- OBC AF/GF receptacles also protect from upstream series arcs
- Trip indicators make it easy to diagnose arc and ground faults
- Device self tests periodically to ensure proper function of both the ground fault and arc fault protection elements
- Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Tapered backwire openings handle multiple wire sizes and types for application up to 10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
- Lockout functionality prevents mis-wired line load connection and GFCI/AFCI circuitry damage
- Visual indicator light provides quick visual reference of a tripped or "end of life" condition
- Tamper-resistant shutters comply with 2014 NEC Article 406.12
- Terminal screws are backed out and ready to wiring
