Decora AGTR2-W

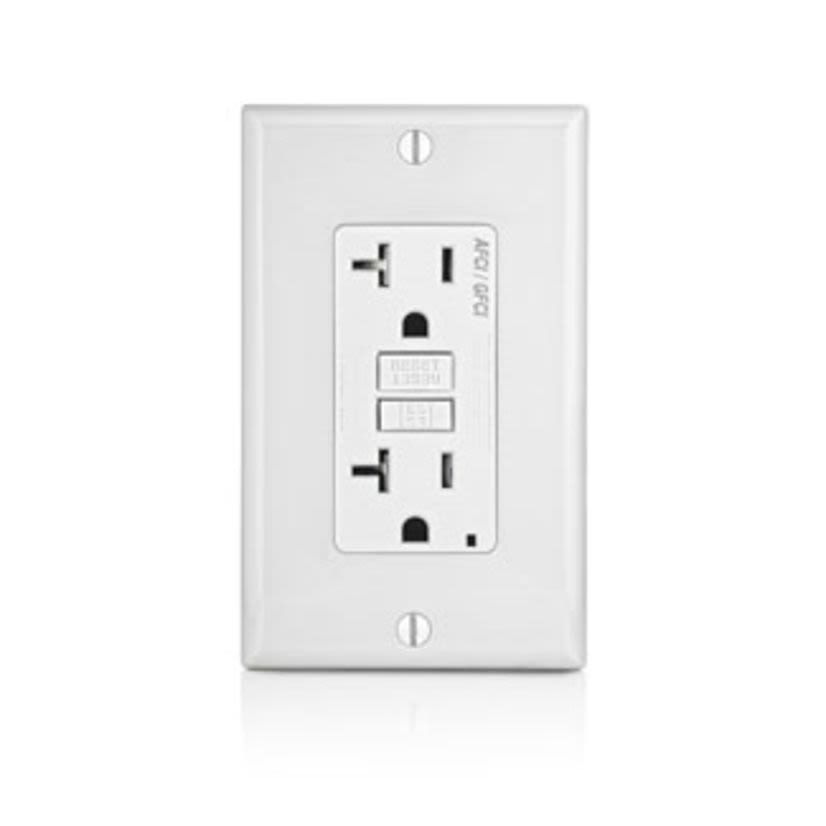

Leviton Decora AGTR2-W Dual Function AFCI/GFCI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Decora AGTR2-W
Leviton Decora AGTR2-W Dual Function AFCI/GFCI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandDecora
MFG #AGTR2-W
Werner Part #4159808
UPC078477744420
Non-stock product. Available to order - lead time may vary.
BrandDecora
MFG #AGTR2-W
Werner Part #4159808
UPC078477744420
Product Description
Leviton Decora AFCI/GFCI Receptacle, Dual Function, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R Rating, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 1.68 in W x 1.38 in D x 4.21 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginCN
Dimensions1.68 in W x 1.38 in D x 4.21 in H
Horsepower1 hp
ManufacturerLeviton
MaterialPolycarbonate
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-35 to 66 deg C
Terminal TypeBack/Side Wire
TypeDual Function
Type / StyleDual Function
Voltage Rating125 V AC
Documents
Applications
For protection in residential kitchens and laundry areas
Included
Nylon Wallplate/Faceplate, Screws and Self-Grounding Clip
Warranty
2 Years Limited
Features
- Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
- Engineered to meet the latest UL standard for auto-monitoring (self-test)
- On initial power up, tests the GFCI circuit within 3 sec
- Patented lockout action prevents reset if the device is damaged
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal for at a glance analysis
- Test and reset buttons are readily accessible on the face of the device
- Improved immunity to high frequency noise reduces nuisance tripping
- Superior resistance to electrical surges and over voltages enhancing reliability
- Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
- 1-piece T-design trip latch mechanism provides efficient operation
- Impact-resistant thermoplastic cover and body for durability
- Expanded wiring options with nine back wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
- Compatible with all Decora devices and wallplates for multi-gang installation option
- Tamper-resistant to comply with the latest NEC requirements for tamper-resistant receptacles in residences and childcare facilities
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2/M-02A|Federal Specification WC-596|NEMA WD6|NOM Certified|UL 498|UL 1699A
