NSi ITB20-12

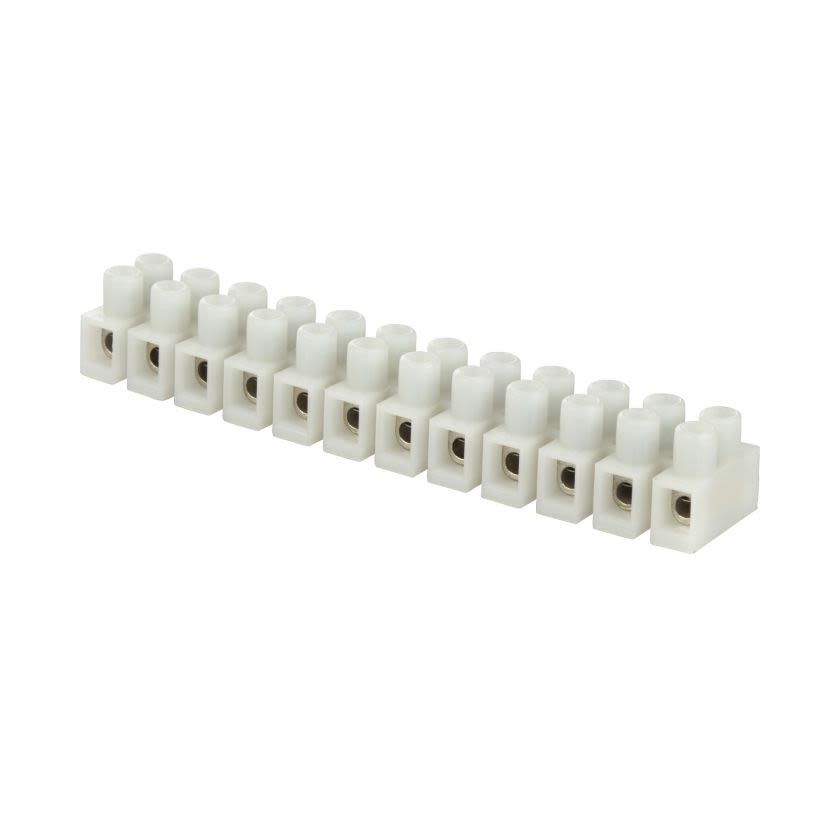

Polaris ITB20-12 ITB 12-Circuit Terminal Block, 300 V AC, 10/20 A, 22 to 12 AWG, 20 to 18 AWG Wire, Screw Mount
NSi ITB20-12
Polaris ITB20-12 ITB 12-Circuit Terminal Block, 300 V AC, 10/20 A, 22 to 12 AWG, 20 to 18 AWG Wire, Screw MountIn Stock: 12more info
|
In Stock: 12more info
|
Product Description
Polaris, ITB20-12, Terminal Block, 12-Circuit, Series: ITB, 300 V AC, 10/20 A, 22 to 12 AWG, 20 to 18 AWG Wire, Wire Terminal, 0.11 in Terminal, 0.315 in Spacing, Screw Mounting, 110 deg C, Nylon 66, White, 3.787 in L x 0.669 in W x 0.57 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginCN
Dimensions3.787 in L x 0.669 in W x 0.57 in H
ManufacturerNSi Industries
MaterialNylon 66
Mounting TypeThreaded
Package TypeEACH
SeriesITB
Size of Wire22 to 12 AWG, 20 to 18 AWG
Temperature Rating110 deg C
Terminal TypeWire
Type12-Circuit
Type / Style12-Circuit
Voltage Rating300 V AC
Documents
Applications
For wire termination
Warranty
1 Year
Features
- Nylon 66 housing ensures 'touchproof' safety, Brass metal alloy, nickel plated terminal insert, Zinc plated, yellow chromed screws
- Recessed screws and tubular contacts provide additional safety and help prevent short circuits
- Integrated stainless steel spring wire protectors prevent twisting and breaking of stranded wires during installation
- Tubular contacts connect stripped solid or stranded un-terminated wire directly to each contact
- Modular design allows for connector to be cut into smaller sections or stacked end-to-end
Specifications
Standards/Approvals: CSA Certified|cULus Recognized|UL 94V-2 Flammability Rating
