NSi WAGS-4/0-8

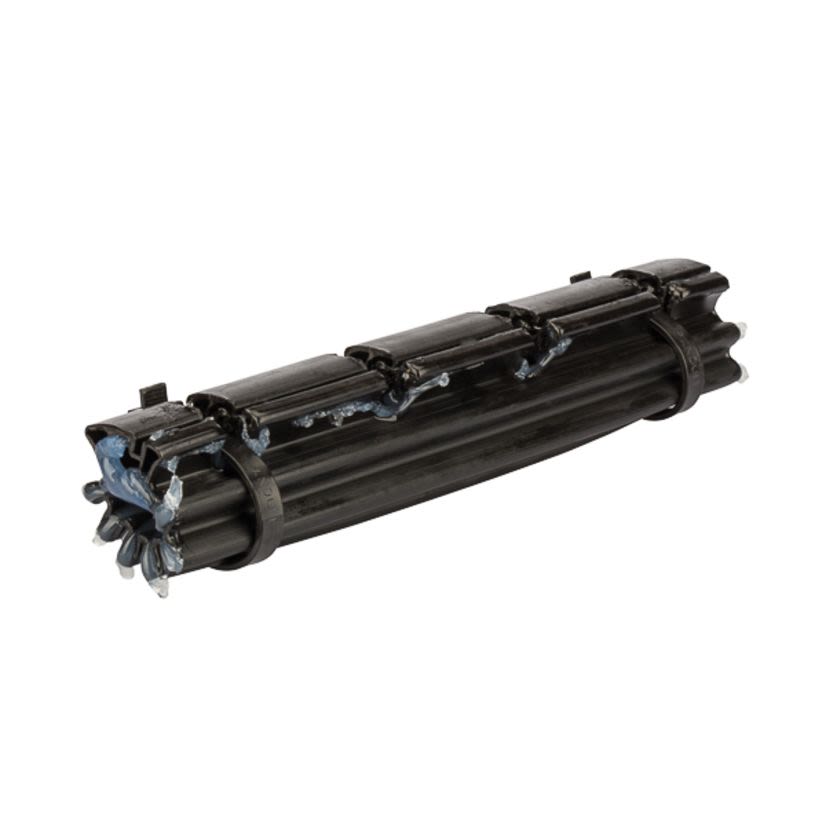

Polaris WAGS-4/0-8 WAGS Wraparound Splice Kit, 1 kV AC, 14 to 4/0 AWG Conductor, 8 in L Splice
NSi WAGS-4/0-8
Polaris WAGS-4/0-8 WAGS Wraparound Splice Kit, 1 kV AC, 14 to 4/0 AWG Conductor, 8 in L SpliceIn Stock: 52more info
|
BrandNSi
MFG #WAGS-4/0-8
Werner Part #2380169
UPC662381015730
In Stock: 52more info
|
BrandNSi
MFG #WAGS-4/0-8
Werner Part #2380169
UPC662381015730
Product Description
Polaris, WAGS-4/0-8, Splice Kit, Wraparound, Series: WAGS, 1 kV AC, Class A-B Cable, 14 to 4/0 AWG Conductor, 0.15 to 0.7 in OD Insulation, 8 in Splice Length, 2 Conductors, Compression/In-Line Connector, -40 to 90 deg C, Black
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Conductor size14 to 4/0 AWG
Country of OriginMX
ManufacturerNSi Industries
Package TypeEACH
SeriesWAGS
Temperature Rating-40 to 90 deg C
TypeWraparound
Type / StyleWraparound
Voltage Rating1 kV AC
Documents
Applications
For fast installation and splicing wire applications
Warranty
1 Year
Features
- Easy-Splice wrap around gel splice closure sleeves quickly insulate and seal buried electrical connections rated up to 1000 V
- Engineered to handle direct burial and manhole applications, these splice enclosure sleeves are equally well-suited for insulation and jacket repair
- Simply wrap and snap the sleeve on any cable in the use rang
- Sealant gel in the sleeve seals on contact
- Splice closure sleeve can be applied on all common compression connectors and low voltage cables, as well as in-line mechanical connectors
- 1-1/2 in each side minimum seal length is required on each side of the connector opening or jacket damage
- 5 in maximum connector opening
Specifications
Standards/Approvals: ANSI C119.1-1986
