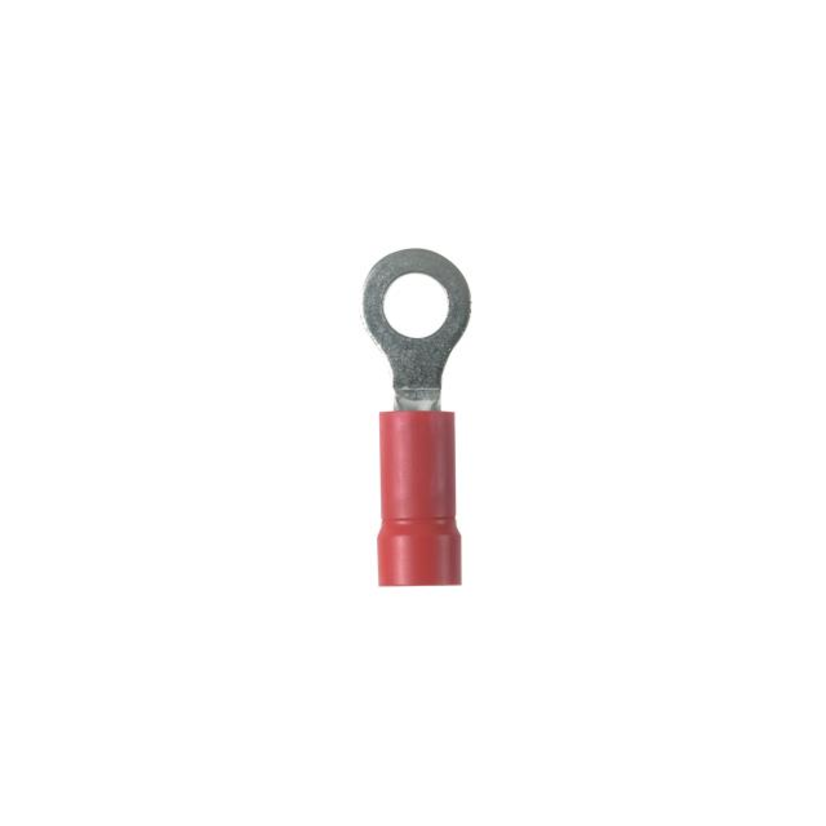

Panduit PMV1-5RB-CY
Panduit Pan-Term PMV1-5RB-CY Type PMV-RB Ring Terminal, 18 AWG Conductor, 0.91 in L, Butted Seam/Funnel Entry/Internal Serration/Insulation Grip Sleeve Barrel, Copper, Red
Panduit PMV1-5RB-CY
Panduit Pan-Term PMV1-5RB-CY Type PMV-RB Ring Terminal, 18 AWG Conductor, 0.91 in L, Butted Seam/Funnel Entry/Internal Serration/Insulation Grip Sleeve Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PMV1-5RB-CY
Werner Part #4229967
UPC074983695232
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PMV1-5RB-CY
Werner Part #4229967
UPC074983695232
Product Description
Panduit Pan-Term Ring Terminal, Type PMV-RB, Solid/Stranded Conductor, 18 AWG Conductor, M5 Stud, 0.91 in Length, Butted Seam/Funnel Entry/Internal Serration/Insulation Grip Sleeve Barrel, Ring Tongue, 0.35 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.31 in Mounting Hole Size, Ring Shape Enclosure, Vinyl Insulation, 221 deg F, Copper, Tin Plated, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeButted Seam/Funnel Entry/Internal Serration/Insulation Grip Sleeve
ColorRed
Conductor size18 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
FinishTin Plated
Length0.9 in
ManufacturerPanduit
MaterialCopper
Stud SizeM5
Temperature Rating221 deg F
Tongue Size0.35 in W x 0.03 in THK
Tongue TypeRing
TypeType PMV-RB
Voltage Rating600 V
Features
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.31 in Mounting Hole Size, Ring Shape Enclosure, Vinyl Insulation
