IDEAL 30-412

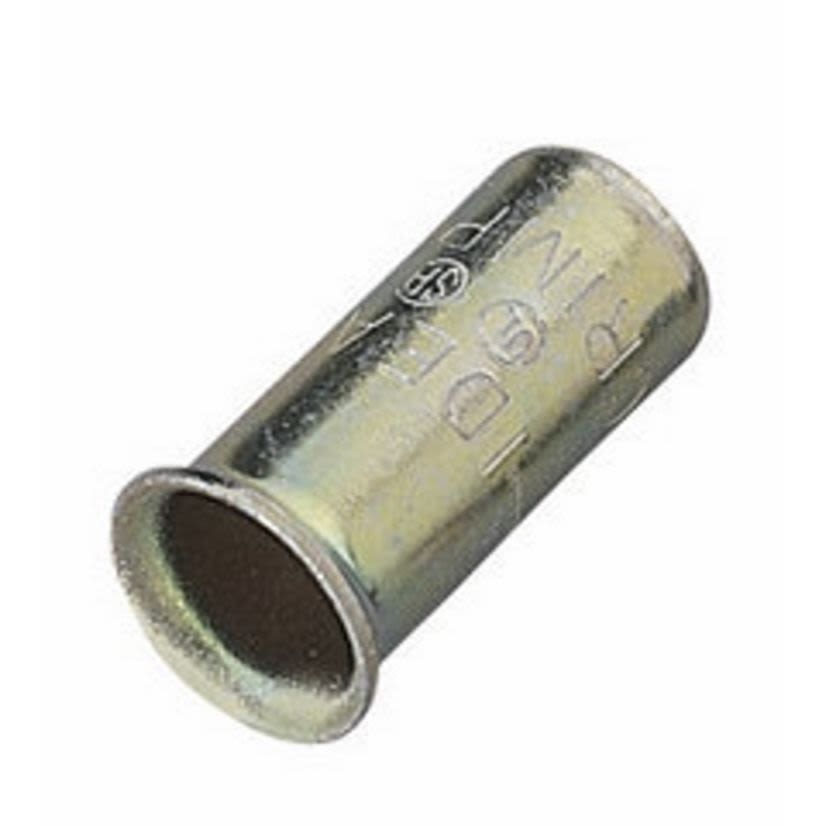

IDEAL 30-412 412 Crimp Connector, 18 to 4 AWG, Copper/Steel
IDEAL 30-412
IDEAL 30-412 412 Crimp Connector, 18 to 4 AWG, Copper/SteelNon-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #30-412
Werner Part #40216
UPC783250304127
Non-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #30-412
Werner Part #40216
UPC783250304127
Product Description
IDEAL Crimp Connector, Series: 412, 18 to 4 AWG Wire, 600 V AC, Specifications: (1) 14 AWG with (1) 16 AWG Minimum, (2) 8 AWG with (1) 6 AWG Max Conductor Range, 221 deg F, Copper/Steel, Zinc Plated, 51/64 in L x 19/64 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginUS
Dimensions51/64 in L x 19/64 in W
FinishZinc Plated
ManufacturerIdeal Industries
MaterialCopper/Steel
Package TypeEACH
Series412
Size of Wire18 to 4 AWG
Temperature Rating221 deg F
Type / StyleCrimp Connector
Voltage Rating600 V AC
Applications
For making fast, permanent and pressure type connections
Features
- Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available
- The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock
Specifications
(1) 14 AWG with (1) 16 AWG Minimum, (2) 8 AWG with (1) 6 AWG Max Conductor Range
