Panduit PV18-P47-CY

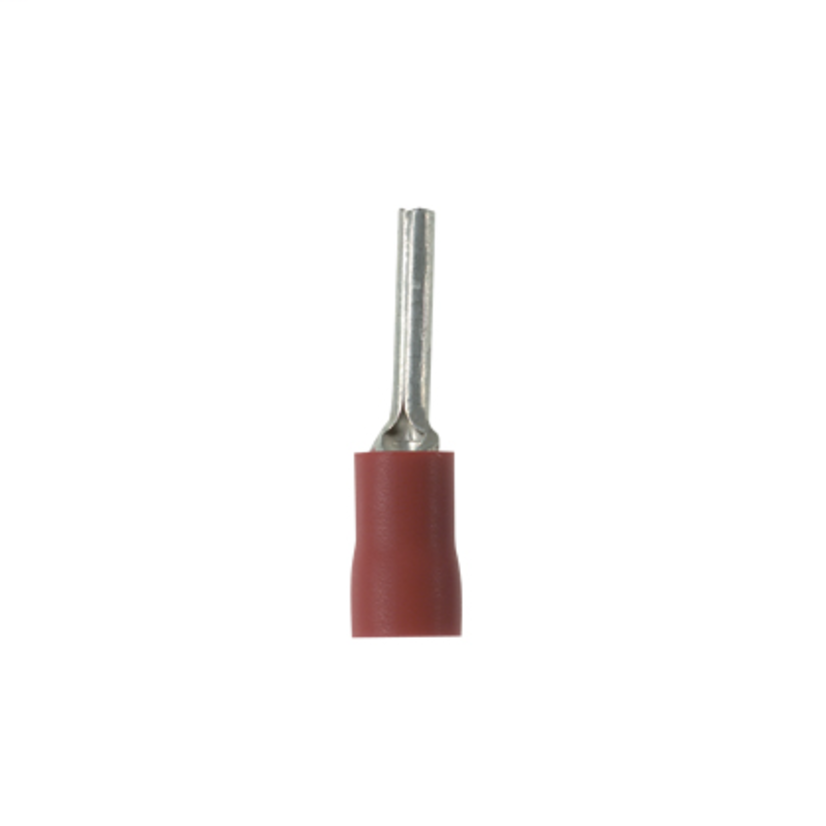

Panduit Pan-Term PV18-P47-CY Loose Piece Insulated Standard Pin Terminal, 22 to 18 AWG Conductor, 0.07 in Dia x 0.49 in L Pin, Copper, Red
Panduit PV18-P47-CY
Panduit Pan-Term PV18-P47-CY Loose Piece Insulated Standard Pin Terminal, 22 to 18 AWG Conductor, 0.07 in Dia x 0.49 in L Pin, Copper, RedIn Stock: 100more info
|
BrandPanduit
MFG #PV18-P47-CY
Werner Part #2329597
UPC074983694822
In Stock: 100more info
|
BrandPanduit
MFG #PV18-P47-CY
Werner Part #2329597
UPC074983694822
Product Description
Panduit Pan-Term Pin Terminal, Loose Piece Insulated Standard, Series: PV, Copper/Solid/Stranded Conductor, 22 to 18 AWG Conductor, 0.07 in Pin Diameter, 0.49 in Pin Length, 600 V AC, Specifications: 0.03 in Stock, 0.15 in Dia Maximum Vinyl Insulation, 5/16 in L Wire Strip, Copper, 221 deg F, 0.97 in Overall Length, Red
Attributes
Documents
Features
Specifications
Attributes
ColorRed
Conductor size22 to 18 AWG
Conductor TypeCopper/Solid/Stranded
Country of OriginMX
ManufacturerPanduit
MaterialCopper
Overall Length0.97 in
Pin Length0.49 in
SeriesPV
Temperature Rating221 deg F
TypeLoose Piece Insulated Standard
Type / StyleInsulated Loose Piece Standard
Voltage Rating600 V AC
Documents
Features
- Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
- Standard barrel configuration
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending application
- CT-100A, CT-260, CT-1550, CT-1551, CT-2500 recommended installation tool
- Standard barrel configuration, brazed seam barrel
- Pin shape enclosure
- Tin-plated finish
Specifications
0.03 in Stock, 0.15 in Dia Maximum Vinyl Insulation, 5/16 in L Wire Strip
