Panduit PV14-P47B-3K

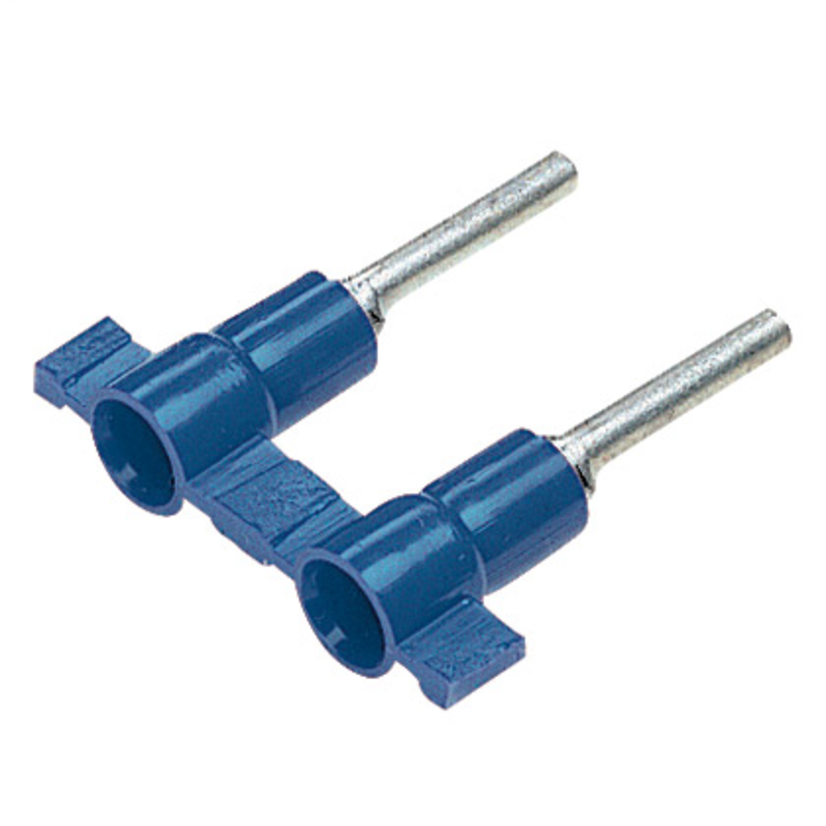

Panduit Pan-Term PV14-P47B-3K PV Series Insulated Standard Pin Terminal, 16 to 14 AWG Conductor, 0.08 in Dia x 0.49 in L Pin, Copper, Blue
Panduit PV14-P47B-3K
Panduit Pan-Term PV14-P47B-3K PV Series Insulated Standard Pin Terminal, 16 to 14 AWG Conductor, 0.08 in Dia x 0.49 in L Pin, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV14-P47B-3K
Werner Part #54769
UPC074983369133
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV14-P47B-3K
Werner Part #54769
UPC074983369133
Product Description
Panduit Pan-Term Pin Terminal, Insulated Standard, Series: PV Series, Copper/Solid/Stranded Conductor, 16 to 14 AWG Conductor, 0.08 in Pin Dia, 0.49 in Pin Length, 600 V AC, 0.03 in Stock, 0.17 in Dia Maximum Vinyl Insulation, 0.3 in L Wire Strip, Copper, 221 deg F, 0.9 in Overall Length, Blue
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Conductor size16 to 14 AWG
Conductor TypeCopper/Solid/Stranded
Country of OriginMX
ManufacturerPanduit
MaterialCopper
Overall Length0.9 in
Pin Length0.49 in
SeriesPV Series
Temperature Rating221 deg F
TypeInsulated Standard
Type / StyleInsulated Standard
Voltage Rating600 V AC
Documents
Applications
For pin type terminal blocks
Features
- Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection Insulation support helps to prevent wire damage in bending applications internal barrel serrations assure good wire contact and maximum tensile strength
- Pin shape enclosure
- Tin plated finish
Specifications
0.03 in Stock, 0.17 in Dia Maximum Vinyl Insulation, 0.3 in L Wire Strip
