Panduit PV14-P47-C

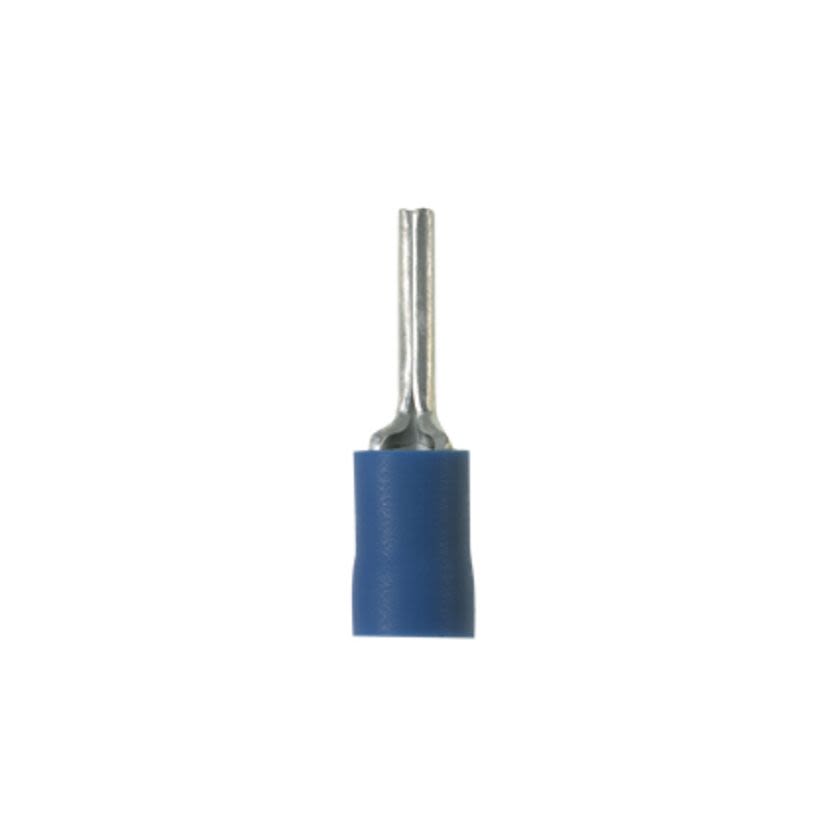

Panduit Pan-Term PV14-P47-C PV Series Loose Piece Insulated Standard Pin Terminal, 16 to 14 AWG Conductor, 0.07 in Dia x 0.49 in L Pin, Copper, Blue
Panduit PV14-P47-C
Panduit Pan-Term PV14-P47-C PV Series Loose Piece Insulated Standard Pin Terminal, 16 to 14 AWG Conductor, 0.07 in Dia x 0.49 in L Pin, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV14-P47-C
Werner Part #54770
UPC074983812219
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV14-P47-C
Werner Part #54770
UPC074983812219
Product Description
Panduit Pan-Term Pin Terminal, Loose Piece Insulated Standard, Series: PV Series, Copper/Solid/Stranded Conductor, 16 to 14 AWG Conductor, 0.07 in Pin Dia, 0.49 in Pin Length, 600 V AC, 0.03 in Stock, 0.17 in Dia Maximum Vinyl Insulation, 5/16 in L Wire Strip, Copper, 221 deg F, 0.97 in Overall Length, Blue
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Conductor size16 to 14 AWG
Conductor TypeCopper/Solid/Stranded
Country of OriginMX
Die CodeCT-100A, CT-260, CT-1550, CT-1551, CT-2500
Dimensions0.17 in Dia
ManufacturerPanduit
MaterialCopper
Overall Length0.97 in
Package Height1.75 in
Package Length3.6 in
Package Volume17915.9 cu-in
Package Weight0.24 lb
Package Width1.8 IN
Pin Length0.49 in
SeriesPV Series
Temperature Rating221 deg F
TypeLoose Piece Insulated Standard
Type / StyleInsulated Loose Piece Standard
Voltage Rating600 V AC
Documents
Applications
For pin type terminal blocks
Features
- Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
- Standard barrel configuration
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- CT-100A, CT-260, CT-1550, CT-1551, CT-2500 recommended installations tool
- Standard barrel configuration, brazed seam barrel
- Pin shape enclosure
- Tin plated finish
- Solid pin designed to prevent damage to the wire from over tightening
- Resulting in a reliable electrical connection internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam barrel, standard barrel configuration
- Pin shape enclosure
- Tin-plated finish
Specifications
0.03 in Stock, 0.17 in Dia Maximum Vinyl Insulation, 5/16 in L Wire Strip
