3M 7100054896

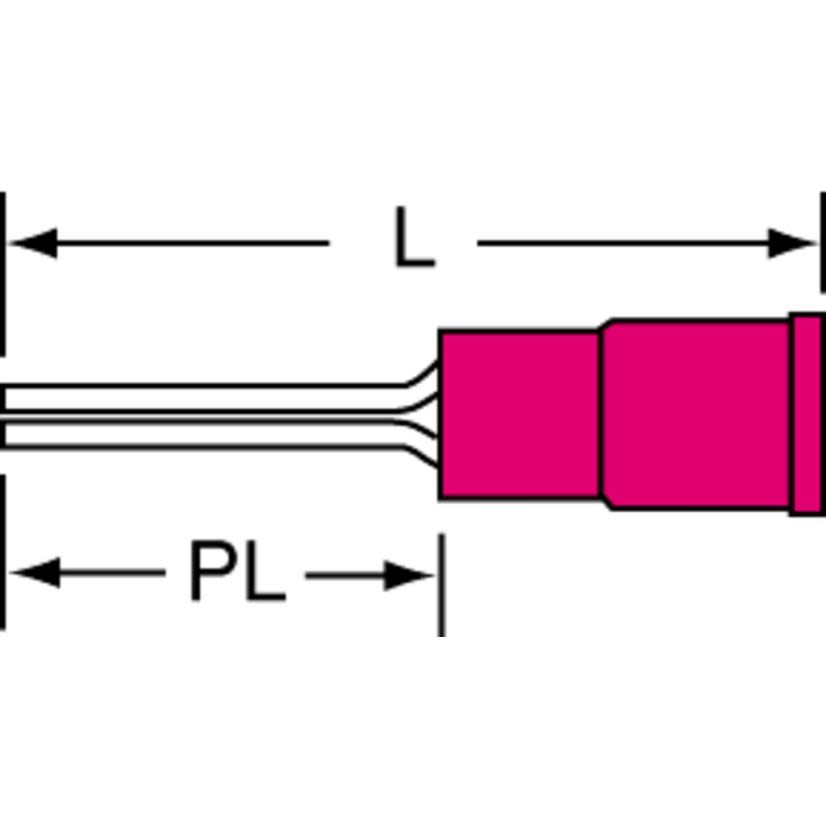

3M 7100054896 MVU18-47PX-A Insulated Pin Terminal, 0.07 in Dia 0.47 in L Pin, Vinyl, Red
3M 7100054896
3M 7100054896 MVU18-47PX-A Insulated Pin Terminal, 0.07 in Dia 0.47 in L Pin, Vinyl, RedNon-stock product. Available to order - lead time may vary.
Brand3M
MFG #7100054896
Werner Part #3902320
UPC051128588710
Non-stock product. Available to order - lead time may vary.
Brand3M
MFG #7100054896
Werner Part #3902320
UPC051128588710
Product Description
3M, 7100054896, Pin Terminal, Insulated, Series: MVU18-47PX-A, 0.07 in Pin Diameter, 0.47 in Pin Length, 0.9 in Barrel Length, Specifications: Pin Length 0.47 in, Barrel Length 0.9 in, Color Red, Vinyl, 0.47 in L Dimensions, 0.9 in Overall Length, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel Length0.9 in
ColorRed
Conductor size22 to 18 AWG
Country of OriginTW
Dimensions0.47 in L
Manufacturer3M
MaterialVinyl
Overall Length0.9 in
Pin Length0.47 in
SeriesMVU18-47PX-A
Temperature Rating167 deg F
TypeInsulated
Type / StyleButted Seam Barrel
Voltage Rating600 to 1000 V AC
Documents
Features
- Withstands a maximum temperature of 167 deg F (75 deg C)
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Provides quick connection for set screws or clamps that are used to make electrical contact
- Made of copper for good conductivity and has tin plating for corrosion resistance
Specifications
Pin Length 0.47 in, Barrel Length 0.9 in, Color Red
