Panduit PSCBLK-Q

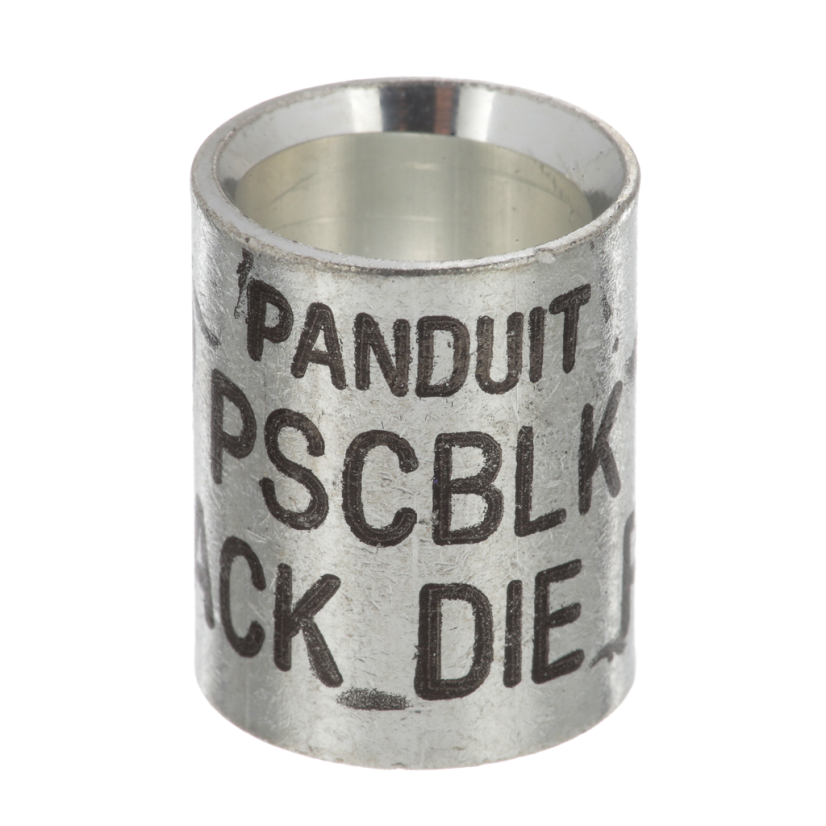

Panduit Pan-Lug PSCBLK-Q Parallel Splice, 12 to 2/0 AWG Copper Stranded Conductor, 0.64 in OD Barrel, 0.81 in L, Copper
Panduit PSCBLK-Q
Panduit Pan-Lug PSCBLK-Q Parallel Splice, 12 to 2/0 AWG Copper Stranded Conductor, 0.64 in OD Barrel, 0.81 in L, CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PSCBLK-Q
Werner Part #4002883
UPC074983013494
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PSCBLK-Q
Werner Part #4002883
UPC074983013494
Product Description
Panduit Pan-Lug Parallel Splice, Copper Stranded Conductor, 12 to 2/0 AWG Conductor, 0.64 in OD Barrel, 0.81 in Length, 7/8 in Wire Strip Length, Die Code: P45, 35 kV, 90 deg C, Copper, Black, Tin Plated
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlack
Conductor size12 to 2/0 AWG
Conductor TypeCopper Stranded
Country of OriginMX
Die CodeP45
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Temperature Rating90 deg C
Type / StyleParallal Splice
Voltage Rating35 kV
Wire Strip Length7/8 in
Documents
Applications
Compression Connector Applications
Features
- Industry recognized color coding allows proper part selection and quick identification of crimping dies to speed installations
- Large easy-to-read part numbering for verification in demanding low light conditions
- Single crimp design speeds installations and reduces labor costs
- Chamfered on both ends to facilitate fast and easy conductor insertion to speed installations
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit dieless and die type crimping tools
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified
