Panduit FSD77-8-D

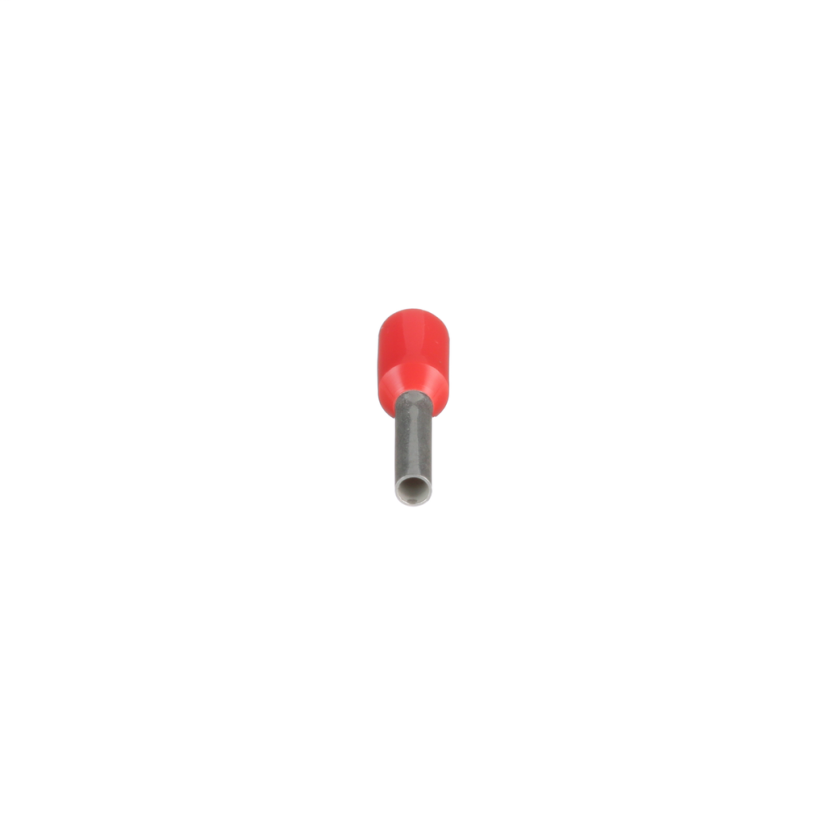

Panduit Pan-Term FSD77-8-D Type FSD Single Insulated Wire Ferrule, 1 sq-mm Stranded Conductor, 0.57 in L, Copper, Red
Panduit FSD77-8-D
Panduit Pan-Term FSD77-8-D Type FSD Single Insulated Wire Ferrule, 1 sq-mm Stranded Conductor, 0.57 in L, Copper, RedIn Stock: 20000more info
|
BrandPanduit
MFG #FSD77-8-D
Werner Part #53983
UPC074983762521
In Stock: 20000more info
|
BrandPanduit
MFG #FSD77-8-D
Werner Part #53983
UPC074983762521
Product Description
Panduit Pan-Term Wire Ferrule, Type FSD Single Insulated, Stranded Conductor, 1 sq-mm Conductor, 0.57 in Length, Seamless Barrel, 0.06 in ID x 0.31 in L Barrel, Specifications: 0.12 in Dia Maximum Wire Insulation, 15/32 in L Wire Strip, 15/32 in Mounting Hole, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.06 in ID x 0.31 in L
Barrel TypeSeamless
ColorRed
Conductor size1 sq-mm
Conductor TypeStranded
Country of OriginDE
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Temperature Rating221 deg F
TypeType FSD Single Insulated
Type / StyleType FSD DIN End Sleeve Single Insulated
Documents
Applications
Limited Space Panel Applications
Features
- Polypropylene insulation
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Specifications
0.12 in Dia Maximum Wire Insulation, 15/32 in L Wire Strip, 15/32 in Mounting Hole, Polypropylene Insulation
