3M 7100165278

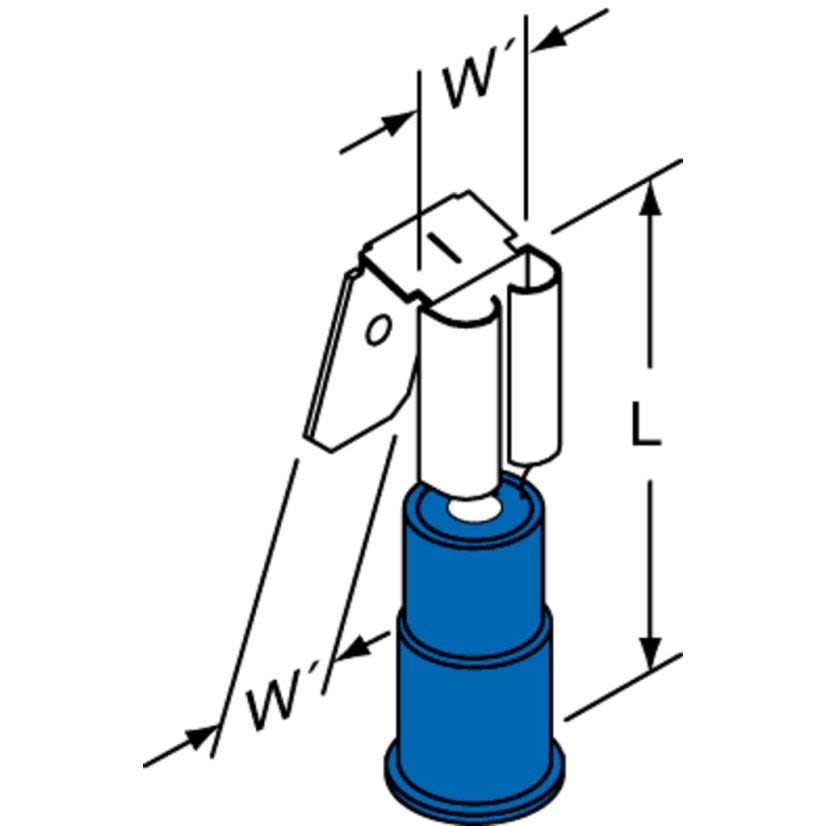

Scotchlok 7100165278 MVU14-250DMFX-A Adapter, 14 AWG Conductor, Butted Barrel, Brass
3M 7100165278
Scotchlok 7100165278 MVU14-250DMFX-A Adapter, 14 AWG Conductor, Butted Barrel, BrassNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Scotchlok, 7100165278, Adapter, Series: MVU14-250DMFX-A, 14 AWG Conductor, Butted Barrel, Disconnect Terminal, Specifications: Female/Male Connection, 0.25 in Connection Width, -40 to 221 deg F, Brass, 0.17 in OD Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeButted
ColorBlue
Conductor size14 AWG
Conductor TypeInsulated
Country of OriginTW
Dimensions0.17 in OD
FinishTin Plated
Manufacturer3M
MaterialBrass
SeriesMVU14-250DMFX-A
Tab Size0.25 in W x 0.032 in THK
Temperature Rating-40 to 221 deg F
Terminal TypeDisconnect
Type / StyleInsulated
Voltage Rating600/1000 V AC
Applications
Allows for quick and easy disconnect of wires
Features
- The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
- Allows for quick and easy disconnect of wires
- Accommodates wire sizes 22 to 18 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
Specifications
Female/Male Connection, 0.25 in Connection Width
